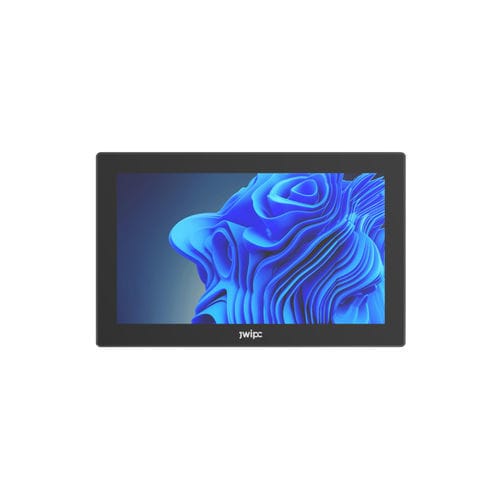

Multitouch screen panel PC IVS-101 series

resistive touch screenLCDPCAP capacitive touch screen

IVS-101 | 10.1 "Integrated industrial tablet Computer series), based on the modular design of capacitive/resistance touch screen 10.1" fanless industrial tablet computer, waterproof, dustproof and other features; IVS-101 can select different configuration motherboards according to customer needs, and the products can be widely used in smart factory, wind power, solar photovoltaic, environmental monitoring and other industries. Core Count/Thread Count 4/4 2P+4E 2P+8E Base Frequency 2.00 GHz - 1.2 GHz 1.3 GHz 1.7 GHz Turbo Frequency 2.60 GHz - 4.4 GHz 4.8 GHz Smart Cache 1.5 10 - 12 TDP - 10W 15W - Storage 1 x M.2 2242/2280 SATA protocol interface 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 NVMe protocol interface 1 x 7+15Pin SATA3.0 protocol interface 1 x M.2 2242/2280 SATA protocol 1 x 7+15Pin SATA3.0 protocol interface I/O Interfaces Network - 1 x Intel I210AT, 1 x Intel I226-v Ethernet port 3 x Intel I226-V, 1 x Intel I210AT Ethernet port (4 Ethernet ports optional with POE module) Expansion 1 x M.2 Key E 2230 slot, expandable for WiFi 6 wireless module; 1 x M.2 Key B 3052/3042 slot, expandable for 4G/5G modules LCD Screen - Aspect Ratio - 16：10 Luminance - 350 cd/m2 Contrast Ratio 1000:1 Backlight Life - 25000 h Angle of View - 85 (left), 85 (right), 85 (top), 85 (bottom) Luminousness Above 81% (resistive screen > 80%) Physical Specifications Environment Operating Relative Humidity 95% @ 40 ℃ (non-condensing) Storage Temperature (NOP) -20 ~ 60 ℃ (-4 ~ 140 ℉) Shock Resistance (OP) 15g 11ms half-sine wave Vibration Resistance (OP) 5~500Hz 1Grms EMC CE Class A
