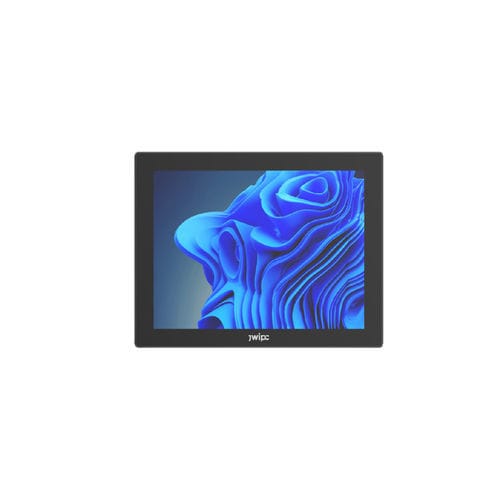

LCD monitor TDS-121 series

PCAP capacitive touch screenmultitouch screen5-wire resistive touch screen

The TDS-121 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows flexible composition of different modules for water and dust resistance. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring. Proportion 4:3 Brightness 500 cd/m2 Contrast - 1200:1 Backlight life 50,000 hours Perspective - 88 (left), 88 (right), 88 (top), 88 (bottom) Power Input voltage DC 12-36V, RVP/SCP/OVP/OCP Power TBD Driver board OSD Menu Menu / Up / Down / Auto Adjust / Power Switch Brightness , contrast , screen settings , color temperature , language settings Mechanical Size - 298.5x237.5x58mm Weight TBD Environment Working relative humidity - 95% @ 40 °C (non-condensing) Storage Temperature (NOP) -20 ~ 60 °C (-4 ~ 140 °F) Impact resistance (OP) 15g 11ms half sine wave Anti-vibration (OP) 5~500 Hz 1Grms EMC CE Class A
