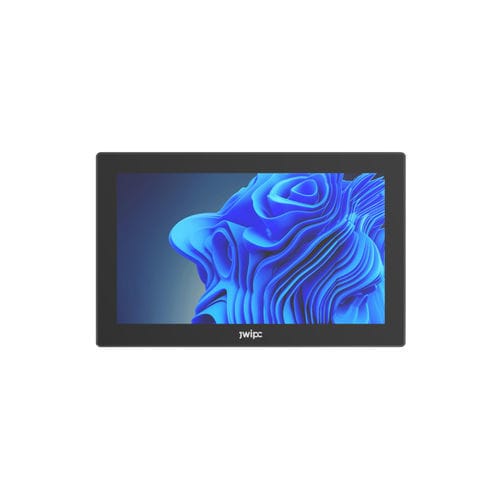

LCD monitor TDS-156 series

PCAP capacitive touch screenmultitouch screen5-wire resistive touch screen

The TDS-156 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows flexible composition of different modules for water and dust resistance. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring. Aspect ratio - 16:9 Luminance (cd/m2) 300 cd/m2 Contrast Ratio - 800:1 Backlight Life 15000 hours Viewing Angle 85 (L), 85 (R), 85 (U), 85 (D) Transmittance >81% (>78% for 5-Wire Resistive) Lifecycle 50 Million Times (10 Million Times for 5-Wire Resistive) Power Power Input DC 12-36V, RVP/SCP/OVP/OCP TDP - TBD Driver Board OSD menu Menu/UP/Down/AUTO Setting/Power Brightness, Contrast Ratio, Setting, Color Temperature, Language Mechanical Dimensions (L×W×H)(mm) 398.4x250.8x58mm weight - TBD Environment Operating Relative Humidity - 95% @ 40 °C (non-condensing) Storage Temperature (NOP) -20 ~ 60 °C (-4 ~ 140 °F) Shock (OP) 15g 11ms Half Sine Wave Vibration (OP) 5~500Hz 1Grms EMC CE Class A
