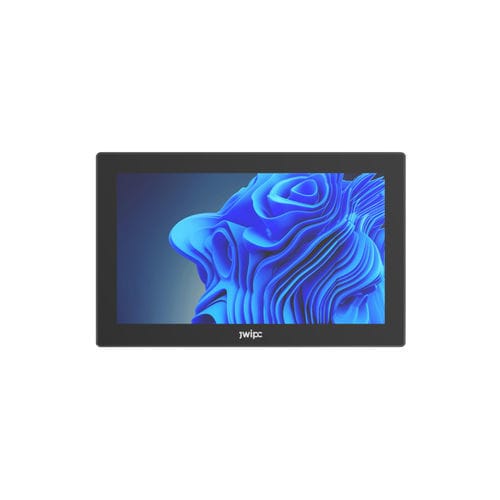

Resistive touch screen panel PC OVS-156 series

LCDLED backlight15.6"

OVS-156 series | 15.6-inch open industrial tablet computer (OVS-156 series | 15.6-inch open industrial tablet series), based on the modular design of capacitive/resistive touch screen, 15.6-inch fanless industrial tablet computer, with waterproof, dustproof and other features; Ovs-156 can flexibly select different configurations according to customer needs, without changing the original design, replacing the OVS module can be quickly upgraded or maintained; Products can be widely used in smart factory, wind power, solar photovoltaic, environmental monitoring and other industries. Storage 1 x M.2 2242/2280 SATA interface 1 x 7+15Pin SATA3.0 interface 1 x M.2 2242/2280 Nvme interface1 x 7+15Pin SATA3.0 interface 1 x M.2 2242/2280 SATA 1 x 7+15Pin SATA3.0 interface I/O Interface 2 x optional RS232/422/485, 4xUSB3.0,1x SIM slot, 1 x remote switch 2 x optional RS232/422/485, 4xUSB3.0,1x remote switch - 2 x optional RS232/422/485,4xUSB3.2,2x isolation RS232（optional）,1x remote switch Aspect Ratio 16:9 Brightness (nits) 300 cd/m2 Contrast Ratio 800:1 Backlight Lifespan 15000 hours View Angle 85 (L), 85(R), 85 (U), 85 (D) Transmittance >81%(>80% for 5-Wire Resistive) Lifespan 50 Million Times（10 Million Times for 5-Wire Resistive ） Power Power Input DC 12-36V, Support RVP/SCP/OVP/OCP Physical Parameters - Dimensions(L×W×H) - 398.4mmx250.8mmx71mm (With Module Three, Height is 79mm ) Environment Operating Temperature（OP） 0 ~ 50 °C (32~122 °F) Operating Relative Humidity 95% @ 40 °C (non-condensing) Storage Temperature （NOP） -20 ~ 60 °C (-4 ~ 140 °F) Shock（OP） 15g 11ms 1Grms Vibration（OP） 5~500Hz 1Grms EMC CE Class A
