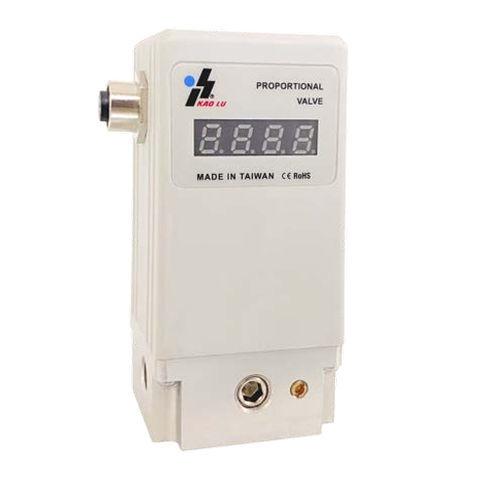

Air pressure regulator QKL-B4NR series

for compressed airfor waterfor gas

KaoLu's QKL-B4NR 30 bar (430 psig) electronic pressure regulator consists of high pressure solenoid valves, high pressure transducer, and intelligent electronics processing PID closed loop pressure regulation. The output air pressure is linearly proportional to the input electronic signal, featuring high accuracy, high speed, and high resolution. This medium pressure electronic air pressure regulator provides a revolutionary performance in both dynamic and static pressure control environment. Features and Applications QKL-B4NR electronic air pressure regulator provides exceptional control ratio from 1 psig up to 430 psig. It has flow rate of 80 L/min at 10 bar inlet pressure, and is suitable for controlling smaller size container, such as mini cylinder, microfluidics and calibration equipment. It works well with both static and dynamic flow. Past customers have used for high accuracy gauge calibration, air leakage testing, and aerospace testing equipment. QKL-B4NR electro pneumatic regulator provides high flow characteristics with flow rate 6000 L/min at 30 bar inlet pressure. It is suitable for regulating air pressure in a large tank or a dynamic flow working conditions. Typical applications are laser cutting machine, PET bottle blow molding, or high volume testing equipment. It features 0.3 bar (4.3 psi) start-up pressure, fast pressure switch time, and high resolution. In case a micro-pressure regulation is needed, please consult our lower pressure model. Both types have selections of external pressure sensor feedback control. Please provide the type of pressure sensor output signal when ordering. https://www.genndih.com/
