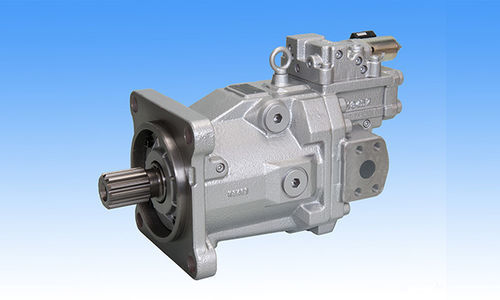

Axial piston hydraulic motor M7V series

high-speedhigh-pressurewith gear reducer

Overview
The M7V / M7X series are variable/fixed displacement motors of swash plate design that can be used in high pressure and high speed condition. By developing and utilizing the accumulated Kawasaki technologies for swash plate type pump/motor, they provide superior performance in wide range of speed from very low speed to high speed rotation that has been achieved only with bent axis type motors. They can be used with general reduction gears or couplings as the installation dimensions (mounting size, output spline) and thread size follow international standard like ISO or SAE.

Features

• Smooth starting characteristic and stable operation at very low speed
• High speed performance on a par with bent axis type motors
• Compact size contributes to better installation
• High reliability and long life for high pressure specification
• Various control options such as electric or pressure control

Specifications (table extracted)
Model | M7V: 85 / 112 / 160 / 212 | M7X: 85 / 112 / 160
Displacement (cm3) q max | M7V: 68-88.5 / 90-112 / 128-160 / 170-215 | M7X: 90 / 112 / 160
Displacement (cm3) q min | M7V: 0-68 / 0-90 / 0-128 / 0-170 | M7X: - / - / -
Pressure (MPa) Rated | 42 (all listed models)
Pressure (MPa) Peak | 50 (all listed models)
Max. speed (min-1) at q max | M7V: 3,900 / 3,550 / 3,100 / 2,900 | M7X: 4,500 / 3,550 / 3,100
Max. speed (min-1) at q < 0.6 qmax | M7V: 6,150 / 5,600 / 4,900 / 4,600 | M7X: - / - / -
Weight (approx.) (kg) | M7V: 39 / 46 / 65 / 90 | M7X: 26 / 34 / 45

Control Curve
Examples of control curves are provided for the series (multiple control curve figures illustrate typical control characteristics).

Applications

• Wheel Loaders
• Dozer
• Backhoe Loaders
• Track Loaders
• Dump Trucks
• Crawler Drills / Pile Drivers
• Cranes (Crawler / Rough Terrain)
• Truck Mounted Cranes
• Compactors
• Asphalt Pavers
• Forklift Trucks
• Telehandlers
• Sprayers
• Combine Harvesters
• Forestry machinery

Caractéristiques / spécifications techniques

• Product type: Axial piston motors (swash plate)
• Series / Model designation: M7V / M7X series
• Displacement ranges (cm3): M7V qmax groups: 68-88.5, 90-112, 128-160, 170-215; M7X: 90, 112, 160
• Displacement minimum ranges (cm3): M7V: 0-68, 0-90, 0-128, 0-170; M7X: not applicable
• Rated pressure: 42 MPa
• Peak pressure: 50 MPa
• Max. speed at qmax (min-1): M7V up to 3,900 / 3,550 / 3,100 / 2,900 depending on displacement; M7X up to 4,500 / 3,550 / 3,100
• Max. speed at q < 0.6 qmax (min-1): M7V up to 6,150 / 5,600 / 4,900 / 4,600 depending on displacement; M7X not specified
• Approx. weight (kg): M7V: 39 / 46 / 65 / 90; M7X: 26 / 34 / 45
• Control options: electric or pressure control
• Installation: mounting size, output spline and thread sizes follow international standards (ISO / SAE)
