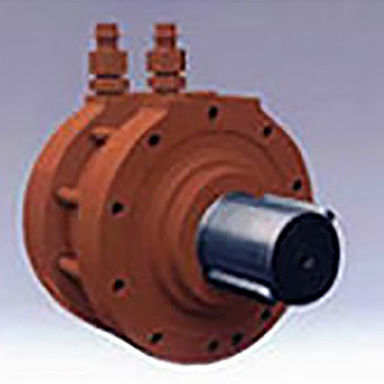

Hydraulic actuator HR series
rotaryfor die-casting applicationsfor the plastics industry

Hydraulic actuator - HR series - Kawasaki Industrial Equipment - rotary / for die-casting applications / for the plastics industry

Add to favorites

Compare this product

Characteristics

Type

hydraulic

Movement

rotary

Applications

for the plastics industry, for die-casting applications

Other characteristics

high-force

Pressure

69 bar, 137 bar
(1,000.76 psi, 1,987.02 psi)

Torque

Max.: 4,805 Nm
(3,543.986 ft.lb)

Min.: 226 Nm
(166.689 ft.lb)

Rotation angle

100 °, 190 °, 280 °

Description

Overview
The Kawasaki rotary actuator converts hydraulic pressure into reciprocating rotary motion over an arc up to 280° total travel, eliminating the need for complex external linkages. Special variants are available with outer stoppers and buffer valves for controlled end-of-travel behavior.

Features

Provides large torque without cumbersome linkage mechanisms.
Available in special types with outer stopper and buffer valve for end-position control.

Specifications
Model | HR-08S-04 | HR-11S-06 | HR-15S-08 | HR-20S-10 | HR-20S-18 | HR-08D-04 | HR-11D-06 | HR-15D-08
Displacement/rad. (cm3/rad) | 20.8 | 57.3 | 154 | 438 | 755 | 41.6 | 115 | 308
Total shaft travel (rad (deg.)) | 4.9 (280) | 4.9 (280) | 4.9 (280) | 3.3 (190) | 3.3 (190) | 1.7 (100) | 1.7 (100) | 1.7 (100)
Pressure (MPa) | 13.7 | 13.7 | 13.7 | 13.7 | 6.9 | 13.7 | 13.7 | 13.7
Rated torque (N·m) | 226 | 628 | 1,716 | 4,805 | 3,972 | 510 | 1,422 | 3,825

Applications

Plastic machinery & die casting

Technical specifications

HR-08S-04 — Displacement: 20.8 cm3/rad; Total shaft travel: 4.9 rad (280°); Pressure: 13.7 MPa; Rated torque: 226 N·m
HR-11S-06 — Displacement: 57.3 cm3/rad; Total shaft travel: 4.9 rad (280°); Pressure: 13.7 MPa; Rated torque: 628 N·m
HR-15S-08 — Displacement: 154 cm3/rad; Total shaft travel: 4.9 rad (280°); Pressure: 13.7 MPa; Rated torque: 1,716 N·m
HR-20S-10 — Displacement: 438 cm3/rad; Total shaft travel: 3.3 rad (190°); Pressure: 13.7 MPa; Rated torque: 4,805 N·m
HR-20S-18 — Displacement: 755 cm3/rad; Total shaft travel: 3.3 rad (190°); Pressure: 6.9 MPa; Rated torque: 3,972 N·m
HR-08D-04 — Displacement: 41.6 cm3/rad; Total shaft travel: 1.7 rad (100°); Pressure: 13.7 MPa; Rated torque: 510 N·m
HR-11D-06 — Displacement: 115 cm3/rad; Total shaft travel: 1.7 rad (100°); Pressure: 13.7 MPa; Rated torque: 1,422 N·m
HR-15D-08 — Displacement: 308 cm3/rad; Total shaft travel: 1.7 rad (100°); Pressure: 13.7 MPa; Rated torque: 3,825 N·m
