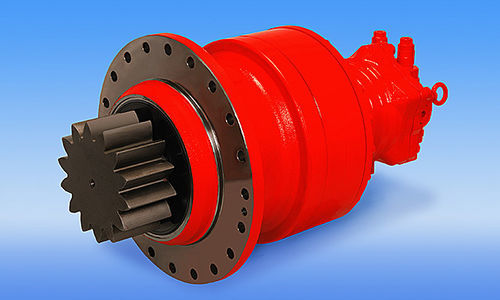

Planetary gear hydraulic motor M5X-RG series

with gear reducerfor heavy-duty applicationsfor construction equipment

Overview
The M5X-RG series are geared motors that integrate the M5X series fixed-displacement motor and a reduction gear. The reduction gear employs a two-stage planetary arrangement to provide reliable operation and extended service life. The M5X-RG series are widely used worldwide as swing motors for excavators, crawler drills/pile drivers, construction machinery and forestry machinery.

Features

• Two-stage planetary reduction gear
• Wide range of pinion specifications
• Designed for swing applications in heavy machinery

Specifications
Models: M5X80-RG06E | M5X80-RG08E | M5X130-RG12E | M5X180-RG16E | M5X180-RG23E | M5X250-RG27D
Gear ratio: 20.01 | 20.01 | 20.01 | 20.01 | 25.2 | 25.2
Total displacement (cm3): 1,580 | 1,580 | 2,590 | 3,600 | 4,540 | 6,300
Pressure (MPa): 5,480 | 6,600 | 12,200 | 16,500 | 23,400 | 27,000
Max speed (min-1): 115 | 115 | 92 | 84 | 67 | 60

Technical characteristics

• Model series: M5X-RG series (for Swing)
• Integrated components: M5X series fixed-displacement motor and two-stage planetary reduction gear
• Typical applications: swing motor for excavators, crawler drills / pile drivers, construction machinery and forestry machinery
• Gear ratio by model: M5X80-RG06E: 20.01; M5X80-RG08E: 20.01; M5X130-RG12E: 20.01; M5X180-RG16E: 20.01; M5X180-RG23E: 25.2; M5X250-RG27D: 25.2
• Total displacement (cm3) by model: M5X80-RG06E: 1,580; M5X80-RG08E: 1,580; M5X130-RG12E: 2,590; M5X180-RG16E: 3,600; M5X180-RG23E: 4,540; M5X250-RG27D: 6,300
• Pressure (MPa) by model: M5X80-RG06E: 5,480; M5X80-RG08E: 6,600; M5X130-RG12E: 12,200; M5X180-RG16E: 16,500; M5X180-RG23E: 23,400; M5X250-RG27D: 27,000
• Maximum speed (min-1) by model: M5X80-RG06E: 115; M5X80-RG08E: 115; M5X130-RG12E: 92; M5X180-RG16E: 84; M5X180-RG23E: 67; M5X250-RG27D: 60
