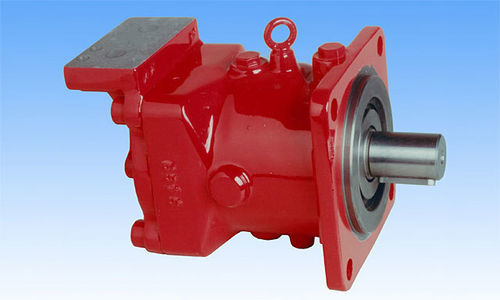

Axial piston hydraulic motor K3X series

high-speedindustrialfixed-displacement

Overview
The K3X series are fixed-displacement axial piston motors of swash plate design for industrial equipment. These motors provide high efficiency and reliability by sharing rotary components with K3V series pumps.

Features

• Fixed-displacement axial piston design (swash plate)
• Permits radial load on the output shaft
• Suitable for installation with the motor shaft oriented upward

Specifications
Models: K3X63 | K3X80 | K3X90 | K3X112
Displacement (cm3): 64 | 82 | 89 | 111
Rated pressure (MPa): 31.4 (all models) | Max pressure (MPa): 34.3 (all models)
Max speed (min-1) standard type: K3X63: 2,400 | K3X80 / K3X90 / K3X112: 2,200
Max speed (min-1) high speed type: K3X63 / K3X80 / K3X90: 3,000 | K3X112: 2,400

Technical specifications

• Models: K3X63, K3X80, K3X90, K3X112
• Displacement (cm3): 64 (K3X63), 82 (K3X80), 89 (K3X90), 111 (K3X112)
• Rated pressure: 31.4 MPa (all models)
• Max pressure: 34.3 MPa (all models)
• Max speed (standard): 2,400 min-1 (K3X63), 2,200 min-1 (K3X80/90/112)
• Max speed (high speed): 3,000 min-1 (K3X63/80/90), 2,400 min-1 (K3X112)
• Design: fixed-displacement axial piston motor (swash plate)
• Compatibility: uses common rotary parts with K3V series pumps
