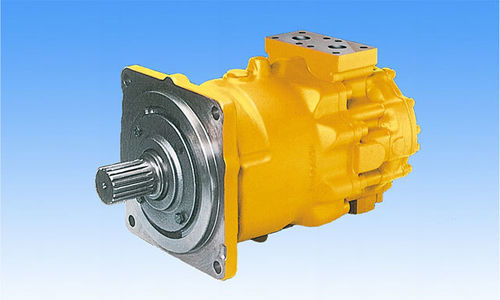

Axial piston hydraulic motor M3 series

low-speedwith gear reducerfixed-displacement

Product Overview
The M3X series are fixed displacement axial piston motors of swash plate design for mobile applications.
The M3B series are variable displacement axial piston motors of swash plate design for winch application.
These motors have a good self-priming capability and high starting efficiency, developed based on our many years of experience and technology obtained in swash plate type pumps and motors.
By combining the reduction gear RG series and M3X / M3B series, they provide to cover up large capacity.

Features

• Superior performance in low speed operation
• Smooth starting characteristic
• Various displacement control options
• Larger capacity is possible with reduction gears RG series

Control Curve
The above are the example of control curves.

Applications

• Crawler Drills/ Pile Drivers
• Cranes (Crawler / Rough Terrain)
• Crushers
• Plastic Machinery & Die Casting
• Tunnel Boring Machines
• Cargo Vessels
• Oil Tankers
• Offshore Vessels

Specifications (M3X series)
Model | M3X200 | M3X280 | M3X530 | M3X800
Displacement (cm3) | 195 | 280 | 533 | 800
Pressure Rated (MPa) | 29.4 (all models)
Pressure Max (MPa) | 34.3 (all models)
Max. speed (min-1) | 1,900 | 1,700 | 1,400 | 1,200

Specifications (M3B series)
Model | M3B200 | M3B280 | M3B530 | M3B800
Displacement q max (cm3) | 195 | 280 | 533 | 800
Displacement q min (cm3) | 106 | 93 | 178 | 267
Pressure Rated (MPa) | 32 (M3B200) ; 29.4 (M3B280 / M3B530 / M3B800)
Pressure Max (MPa) | 35 (M3B200) ; 34.3 (M3B280 / M3B530 / M3B800)
Max. speed at q max (min-1) | 1,900 | 1,700 | 1,400 | 1,200
Max. speed at q min (min-1) | 2,400 | 2,200 | 1,700 | 1,500

Specifications (Combined with RG series)
Model | M3X200-RG03S6.0 | M3X280-M3B280-RG06S6.4 | M3X530-M3B530-RG10S6.4 | M3X800-M3B800-RG16S6.4
Gear ratio | 6.0 | 6.4 | 6.4 | 6.4
Total Displacement (cm3) | 894 | 1,587 | 3,104 | 4,717
Pressure (MPa) | 20.6 (all combined models)
Max. speed (min-1) | 270 | 190 | 150 | 130

Characteristics / Technical specifications

• Series: M3X (fixed displacement) and M3B (variable displacement)
• Displacement range (single unit): 195 cm3 to 800 cm3 (per model)
• M3X Rated Pressure: 29.4 MPa; Max Pressure: 34.3 MPa
• M3X Max speeds: up to 1,900 min-1 depending on model
• M3B q max range: 195 to 800 cm3; q min range: 93 to 267 cm3
• M3B Rated Pressure: 32 MPa (M3B200) and 29.4 MPa (other M3B models); M3B Max Pressure: 35 MPa (M3B200) and 34.3 MPa (others)
• M3B Max speeds: up to 2,400 min-1 at q min (model dependent)
• Combined RG gear options available to increase total displacement and adapt gear ratios (examples: gear ratios 6.0–6.4)
• Typical combined model total displacements shown from 894 cm3 up to 4,717 cm3
