Probe for high-temperature applications IRTD 400

laboratoryindustrialautomatic

Description
The Kaye IRTD-400 is a traceable temperature reference probe used in Kaye validation systems for high-accuracy calibration and verification of temperature sensors. With a wide operating range from -196 to 420 °C and an accuracy of ±0.025 °C over the range, it supports cryogenic, laboratory, industrial and high-temperature calibration tasks.

Applications

• Calibration and verification of RTDs, thermocouples and thermometers
• Temperature validation in pharmaceutical, food, laboratory and industrial environments
• Integration with Kaye automated systems for traceable records and automatic offset calculation

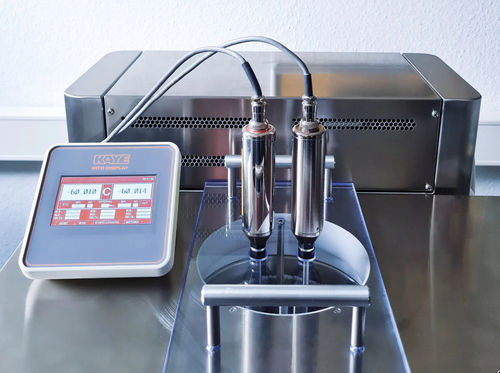

Interface & IRTD Display
The probe integrates with IRTDWin® and the Kaye Console via USB. The calibration interface supports up to two IRTDs and displays temperatures in real time with 0.001 °C resolution. The optional Kaye IRTD Display is a standalone 4.3" touchscreen showing both probe readings and the delta. When used with the Console the interface can be powered by the computer without an external supply.

Features

• Temperature range: -196 to 420 °C
• Accuracy over range: ±0.025 °C
• Resolution: 0.001 °C
• Sensor element: 200 Ω platinum RTD
• Sheath material: Inconel 600
• Minimum immersion depth: 101.6 mm (4")
• Calibration traceable to NIST or PTB/DAkkS; recommended interval: 1 year
• Measurement rate: probe up to 30 readings/s; Console display typically 1 reading/s
• Ambient: 0 to 60 °C; humidity 0–95% non‑condensing
• Dimensions: overall length 603 mm; grip 89 × 32 mm; sensor sheath 457 × 6.35 mm

Specifications
Model: IRTD-400
Temperature range: -196 to 420 °C
Accuracy (over range)*: ±0.025 °C
Resolution: 0.001 °C
Sensor: 200 Ω platinum RTD
Sheath: Inconel 600
Minimum immersion: 101.6 mm (4")
Calibration: Traceable to NIST (DAkkS in Europe); recommended interval 1 year
Probe power: unregulated DC 10–25 V — first probe approx. 850 mW @15 V; each additional probe approx. 550 mW
Power supply: 110 VAC (US) or 230 VAC VDE-approved adapter
Measurement rate: Console 1 reading/s; probe capability up to 30 readings/s
Environment: 0 to 60 °C; humidity 0–95% non‑condensing
Dimensions: overall length 603 mm (23.75"); grip 89 × 32 mm; sheath 457 × 6.35 mm

Calibration & Power
Calibration is traceable to national standards (NIST/DAkkS/PTB). Kaye recommends annual calibration for typical use. The probe is powered via the interface or by a dedicated DC source depending on configuration; current consumption varies with the number of connected probes.
