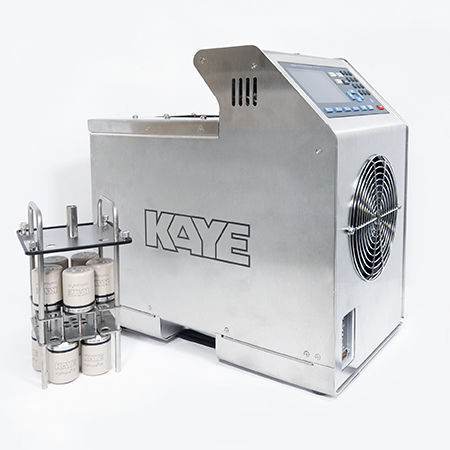

High-temperature calibration bath CTR-25

low-temperatureportable

Description
The Kaye CTR-25 is a portable liquid calibration bath designed for on-site and laboratory verification of temperature sensors and data loggers in GxP and industrial environments. It supports efficient verification of up to 10 ValProbe or ValProbe RT loggers and accommodates various process probes. Onboard firmware enables automatic real-time checks with ValProbe RT or manual verifications with standard ValProbe units.

Key features

• Temperature range: -25 °C to 140 °C
• Stability: 0.01 °C; typical uniformity: 0.02 °C
• Fast heating and cooling performance
• Verification for up to 10 rigid ValProbe/ValProbe RT loggers and other data loggers
• Fixture holds 10 loggers plus one IRTD reference
• Portable design, ~20 kg for field use and shipping
• Peltier temperature control (compressor-free)
• Stainless steel casing resistant to sterilizing chemicals
• Universal power supply 110/240 VAC, 50/60 Hz and large front display

Applications

• Steam-in-Place (SIP) checks: 122 °C to 140 °C
• Autoclave/steam sterilization verification: 121 °C to 135 °C
• Bioreactor validation and process sensor checks: -10 °C to 100 °C
• Cold storage and freezer controls: down to -25 °C
• Routine calibration and verification of temperature probes between -25 °C and +140 °C

Temperature specifications
Range (at 25 °C ambient): -25 °C to 140 °C (cover closed)
Accuracy (maximum permissible error): 0.1 °C
Display resolution: 0.01 °C
Stability: 0.01 °C
Typical uniformity: 0.02 °C
Repeatability: 0.04 °C
Typical heating times: -25 °C to 25 °C = 35 min; 25 °C to 140 °C = 55 min
Typical cooling times: 140 °C to 25 °C = 45 min; 25 °C to -25 °C = 75 min
Typical stabilization time: 10 minutes

General specifications
Dimensions (H x W x D): 382 mm x 242 mm x 400 mm
Weight: approx. 20 kg (44 lb)
Fluid volume: 2.5 L (0.66 gal)
Fluid work area: 75 mm x 75 mm
Maximum fluid depth: 154 mm
Factory calibration: NVLAP certificate included (NVLAP LAB CODE 200913-0)
Interfaces: RS-232, USB 2.0 device, USB 2.0 host
Power: 115 V or 230 V (50/60 Hz), max 1150 W

Technical specifications

• Model: CTR-25
• Operating range: -25 °C to +140 °C
• Maximum permissible error: 0.1 °C
• Display resolution: 0.01 °C
• Stability: 0.01 °C; typical uniformity: 0.02 °C
• Fluid volume: 2.5 L; work area 75 x 75 mm; max depth 154 mm
• Capacity: up to 10 ValProbe loggers
• Cooling technology: Peltier (compressor-free)
• Casing: stainless steel; portable design ≈ 20 kg
• Interfaces: RS-232, USB 2.0 device, USB 2.0 host
• Factory NVLAP calibration certificate included
