Temperature calibrator LTR-200

for RTD sensorsfor temperature sensorsfor thermocouples

Description

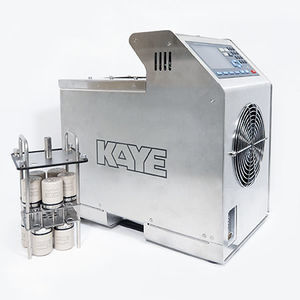

The Kaye LTR-200 is a hybrid dry-block temperature calibrator engineered for laboratory and mobile thermal validation. It performs simultaneous calibration of up to 24 thermocouples using an integrated full-immersion fixture that ensures repeatable positioning and immersion depth. The hybrid design reduces heat-up and cool-down times while supporting RTDs and a wide range of process temperature probes.

Key features

• Operating range: -50°C to 200°C
• Accuracy: ±0.1°C; Stability: ±0.010°C; Uniformity: 0.1°C
• Calibrates up to 24 sensors simultaneously

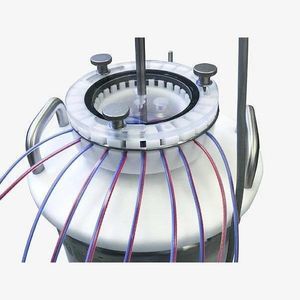

• Integrated thermocouple fixture for secure full-immersion holding
• Hybrid technology for reduced cycle times
• Compatible with Kaye Validator AVS, Kaye Validator 2000, Kaye ValProbe and Kaye ValProbe RT for automated calibration
• Supports thermocouples, IRTD and ValProbe (RT) probes
• 7" color touchscreen; Serial / Ethernet / 3×USB interfaces

Applications

• Calibration laboratories
• On-site validation and mobile calibration
• Autoclaves and SIP (steam-in-place) processes
• Freezers, incubators and environmental chambers

Technical specifications

• Model: LTR-200 (control sensor: external)
• Dry block: Ø 27.7 mm; depth 136 mm
• Dimensions: 210×300×380 mm; Weight: ≈16 kg
• Power supply: 100–240 VAC, 50/60 Hz; Power consumption: 550 W
• Heating/cooling times: 25→140°C: 7 min; 25→200°C: 10 min; -50→25°C: 7 min; 140→25°C: 13 min; 25→-50°C: 27 min
• Interfaces: Serial to Validator / Ethernet / 3 × USB
