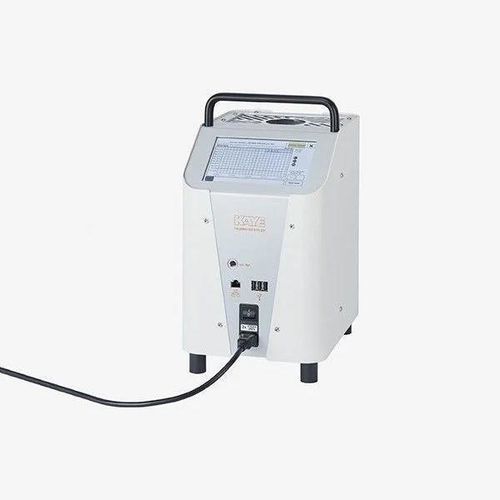

Thermal calibrator HTR-420

for the pharmaceutical industrydry-blockindustrial

Overview
The Kaye HTR-420 is a high-temperature dry-block temperature calibrator for thermal validation and multi-sensor calibration. It supports simultaneous calibration of up to 48 thermocouples using a dedicated fixture, covers an operating range of 30 °C to 420 °C, and offers high stability and uniformity. The unit integrates with Kaye software for automated routines and can operate standalone via a 7" colour touchscreen.

Characteristics / Primary data
Type: high-temperature dry-block temperature calibrator
Applications: calibration laboratories, pharmaceutical and industrial thermal validation

Key features

• Calibrates up to 48 thermocouples simultaneously
• Dedicated thermocouple fixture for secure full immersion of up to 48 TCs
• Operating range: 30 °C to 420 °C
• Temperature stability up to 0.01 °C; uniformity up to 0.1 °C
• Fast heating and cooling ramp times
• Interchangeable dry-block inserts for thermocouples, IRTD, ValProbe (flexible) and RF ValProbe probes
• Compatibility with Validator 2000, Validator AVS, ValProbe and RF ValProbe software for automatic or manual calibrations
• Standalone operation via 7" touchscreen and software interface for integrated workflows
• Universal power supply: 100–240 VAC, 50–60 Hz
• Optional inserts available for specialty or process probes

Notes
Designed to reduce calibration time by enabling multi-sensor calibration and to integrate into existing Kaye calibration ecosystems for automated workflows.

Specifications / Technical data

• Model: HTR-420
• Function: high-temperature dry-block temperature calibrator
• Max simultaneous thermocouples: 48
• Operating temperature range: 30 °C to 420 °C
• Accuracy: ±0.1 °C
• Temperature stability: up to 0.01 °C
• Temperature uniformity: up to 0.1 °C
• Heating/cooling times: 30 °C → 100 °C in 7 min; 30 °C → 350 °C in 20 min; 350 °C → 125 °C in 20 min; 350 °C → 50 °C in 40 min
• Block dimensions: Ø 60 mm; depth 170 mm
• Display: 7" colour touchscreen; selectable resolutions 0.1 / 0.01 / 0.001
• Interfaces: Serial to Validator / Ethernet / 3x USB
• Dimensions: 215 x 290 x 345 mm
• Weight: ~11 kg
• Power supply: 100–240 VAC, 50–60 Hz; max. consumption 1000 W
• Accessories: additional dry-block inserts available
