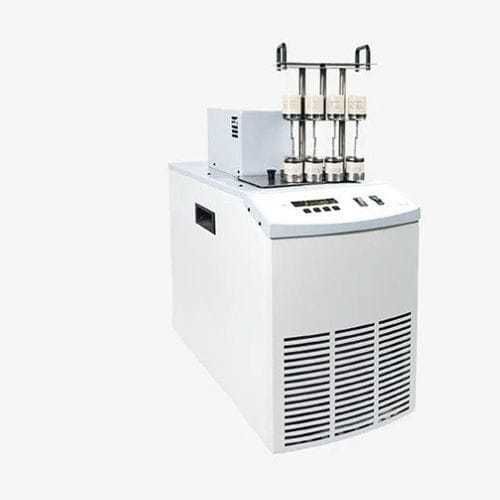

Low-temperature calibration bath CTR-40

high-temperaturefor temperature sensorsportable

Description
The CTR-40 is a portable calibration bath designed for calibration and validation of the Kaye ValProbe RT temperature sensor system. Used with the Kaye IRTD and ValProbe RT software, the CTR-40 performs automated calibrations and verifications for ValProbe RT loggers. The unit delivers high temperature uniformity and stability over a −40 to 150 °C range while remaining quiet in operation.

Key features

• Temperature range: −40 to 150 °C (−40 °F to 302 °F)
• Tank capacity: 9.2 L with dedicated immersion basket for up to 10 ValProbe RT loggers
• Alternative mounting options support up to 16 rigid ValProbe RT loggers or 20 lyophilizer loggers
• Typical cool-down time: 110 minutes from 25 °C to −40 °C
• Temperature stability: ±0.005 °C at −40 °C (ethanol); ±0.005 °C at 25 °C (water); ±0.007 °C at 150 °C (5012 oil)
• Readout resolution: 0.01 °C
• Portable, immersion configuration; automated calibration with Kaye IRTD and ValProbe RT software

Applications

• Autoclaves and steam sterilizers
• Washer-disinfectors
• Fermenters and bioreactors
• Steam-in-Place (SIP) processes
• Freezers, refrigerators and cold rooms
• Stability chambers and incubators
• Warehouses and storage areas
• Glove boxes and isolators

Technical specifications

• Temperature control: heating and cooling
• Configuration: portable, immersion
• Temperature range: Min. −40 °C; Max. 150 °C
• Tank capacity: 9.2 L
• Access/well opening: 172 mm x 94 mm (6.8” x 3.7”)
• Typical heat-up time: 25 °C → 150 °C ≈ 60 minutes
• Typical cool-down time: 25 °C → −40 °C ≈ 110 minutes
• Temperature stability: ±0.005 °C at −40 °C (ethanol); ±0.005 °C at 25 °C (water); ±0.007 °C at 150 °C (5012 oil)
• Readout resolution: 0.01 °C
• Dimensions (H x W x D): 584 mm x 305 mm x 622 mm
• Power: 115 V 60 Hz; 230 V 50 Hz; approx. 1,400 W
