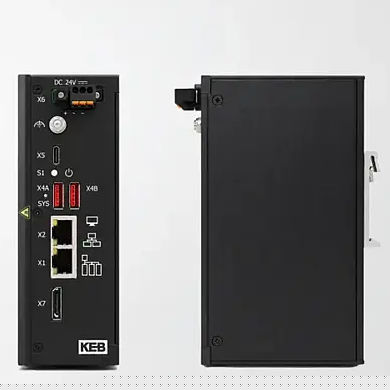

EDGE PC C6 E32

DIN railIntel Atom® x7433REEthernet

Product overview
The C6 E32 Rail is a compact industrial PC for automation tasks, offering Intel® processing performance and long-term industrial availability for real-time control, machine learning and IIoT integration.

Concept and software
Based on a Linux OS, the system uses an open microservices architecture with container-based deployment. Software modules can be integrated and managed via NOA. The real-time capable controller is IEC 61131 programmable and supports synchronized machine motion via the integrated EtherCAT master.

Design and reliability
Fanless, industrial-grade housing and passive cooling ensure reliable operation in harsh environments and contribute to high availability and long service life.

Highlights

• Fanless, compact DIN-rail design
• Intel Atom® x7433RE quad-core processor
• Extensive connectivity and M.2 expansion on request
• Supports PLC, motion control, HMI, NOA and remote maintenance

CPU
Processor: Intel Atom® x7433RE (Quad-Core 1.5 / 3.4 GHz Turbo)
System memory: 8 GB LPDDR5
Graphics: Intel® UHD Graphics, 4096 x 2160 @ 60Hz

Memory
Internal storage: 20 GB eMMC High-Endurance Flash
Optional retain: PLP Retain / Persistent 256 kB
TPM: TPM 2.0
RTC: 3 V lithium battery

Operating data
Power supply: 9 … 36 V DC
Operating temperature: -40 … 60 °C (93% RH at 40 °C non-condensing)
Storage temperature: -40 … +85 °C (93% RH at 40 °C non-condensing)
Protection class: IP20
Cooling: Passive (fanless)

Mechanical specifications
Dimensions (W x H x D): 137 x 50 x 95 mm
Mounting: DIN RAIL

Operating System
Linux

Approvals
CE, UL 61010-1 (pending), UKCA

Interfaces
Ethernet / EtherCAT: 2x 2.5 GbE (Intel® I226-V/IT)
USB: 2x USB 3.2 Type A
USB-C: 1x USB-C
Display: 1x DisplayPort
Buttons/Indicators: Power button & status LED
Expansions: M.2 expansions available on request

Specifications

• Model: C6 E32 (Rail variant)
• CPU: Intel Atom® x7433RE (Quad-Core, 1.5 GHz base / 3.4 GHz Turbo)
• RAM: 8 GB LPDDR5
• Graphics: Intel® UHD Graphics (4096 x 2160 @ 60Hz)
• Storage: 20 GB eMMC High-Endurance Flash
• Security: TPM 2.0; optional PLP Retain
• RTC: 3 V lithium battery
• Power supply: 9 … 36 V DC
• Operating temperature: -40 … 60 °C
• Storage temperature: -40 … +85 °C
• Humidity: up to 93% RH at 40 °C (non-condensing)
• Protection class: IP20
• Cooling: Passive (fanless)
• Mounting: DIN rail
• Connectivity: 2x 2.5 GbE, 2x USB-A 3.2, 1x USB-C, 1x DisplayPort
• Fieldbus / realtime: EtherCAT master support
• Approvals: CE, UL 61010-1 (pending), UKCA
