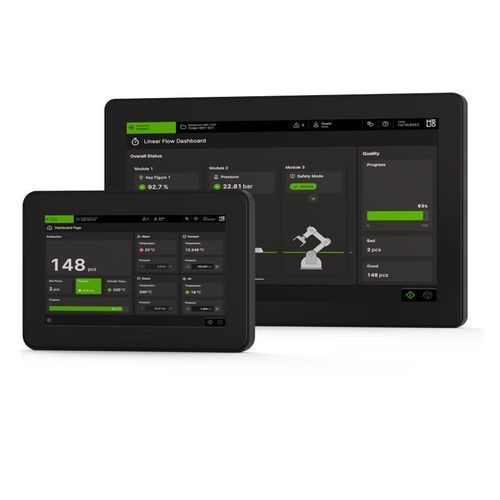

Multitouch screen human machine interface C6 X1 series

projected capacitive touchscreencapacitive touch screenwall-mount

Overview
The C6 X1 Web HMI series provides web-based human‑machine interfaces designed for industrial edge and IIoT applications. Available with projected capacitive multi‑touch displays from 7" to 21.5", the panels support flexible mounting options and Power over Ethernet (PoE) to simplify installation. A Chromium-based HTML5 browser and the HELIO HMI ecosystem enable responsive, platform-independent web UIs for Industry 4.0 deployments.

Highlights

• Projected capacitive multi‑touch displays (7"–21.5")
• Flexible mounting: gooseneck, tube holders, wall mounts, panel or field mount
• High protection class IP67 (with appropriate cable) for installations outside control cabinets
• Web-based operation via Chromium HTML5 browser for edge/IIoT use
• Power over Ethernet (PoE) option for single-cable power and network

Key features

• True multi‑touch capacitive technology
• Display sizes: 7", 10.1", 15.6", 21.5"
• Robust hardware for panel- or field-mounting; IP67 guaranteed with C6 X1 cable
• Single-cable operation possible with PoE (PoE class depends on display size)
• Connectivity: Ethernet (PoE), USB Host (with special cable), Wi‑Fi, NFC
• Integrated sensors: temperature sensor and 3‑axis accelerometer; status RGB LED and buzzer
• Linux OS with Chromium HTML5 browser for web HMIs and edge applications; HELIO available to accelerate UI development

Applications

• IIoT edge visualisation and web HMI for manufacturing and automation
• Field- or machine-mounted operator terminals requiring IP67 protection
• Responsive web-based HMIs for multi-device and remote access scenarios

Technical specifications

• Display - C6 X1-07 : 7" TFT / 16M colors / 1024 x 600 / 400 cd/m² / Projected capacitive, Multitouch
• Display - C6 X1-10 : 10.1" TFT / 16M colors / 1280 x 800 / 400 cd/m² / Projected capacitive, Multitouch
• Display - C6 X1-15 : 15.6" TFT / 16M colors / 1366 x 768 / 400 cd/m² / Projected capacitive, Multitouch
• Display - C6 X1-21 : 21.5" TFT / 16M colors / 1920 x 1080 / 400 cd/m² / Projected capacitive, Multitouch
• CPU / Processor : 64-bit i.MX 8M Mini Quad core, 1.6 GHz
• RAM : 2 GB
• Storage (Flash) : eMMC 8 GB
• FRAM : 64 KB
• Interfaces - Ethernet : 1x Ethernet Port 10/100 with PoE
• Interfaces - USB : 1x USB Host V2.0, max. 500 mA (available with special cable)
• Wi‑Fi : IEEE 802.11 a/b/g (can operate as network device or access point)
• NFC : ISO/IEC 14443A
• Sensors : Temperature sensor, 3-axis accelerometer
• LED / Buzzer : 1 RGB LED / Yes (buzzer)
• Power Supply - C6 X1-07 : IEEE 802.3af 4PPoE / 12 W max.
• Power Supply - C6 X1-10 : IEEE 802.3af PoE / 14 W max.
• Power Supply - C6 X1-15 : IEEE 802.3at PoE+ / 23 W max.
• Power Supply - C6 X1-21 : IEEE 802.3bt 4PPoE / 35 W max.
• Operating Temperature : -20 °C … 55 °C (relative humidity 5 % to 85 % without condensation)
• Storage Temperature : -30 °C … +80 °C
• Protection class : IP67 (guaranteed with C6 X1-Cable)
• Operating System : Linux
