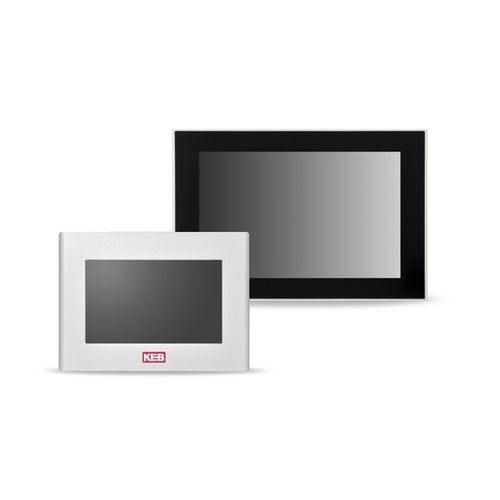

Embedded HMI C6 S14

with touch screen800 x 4801024 x 768

Visualisation, application automation and remote maintenance with scalable, graded, functional properties in the runtime environment – the C6 S14 automation system combines these features in just one device. The real-time control system is a modular, multi-talented all-rounder, and is available in different hardware and software versions. Visualisation and operation are controlled via the (resistive or capacitive) touchscreen panel. Graphical user interfaces can be produced with the COMBIVIS studio HMI design tool. The optimised processor power allows users to manage synchronous motion control tasks with little effort, while still meeting demands for performance. A micro UPS, available as standard, combined with independent memory management for operating systems, runtime environments, non-volatile data and user applications, make the C6 S14 a truly solid and reliable system. The COMBIVIS connect remote maintenance platform, implemented as standard, establishes the foundation for accessing remote devices with an end-to-end connection. HIGHLIGHTS All-in-one automation solution with deterministic real-time control and EtherCAT master (optional CAN master) Optimised processor power for synchronous motion control and rapid switching and detection of signals Displays with resistive or capacitive touch technology in various image formats Smart memory management with internally and externally accessible application memories Panels with an aluminium frame in protection class IP66
