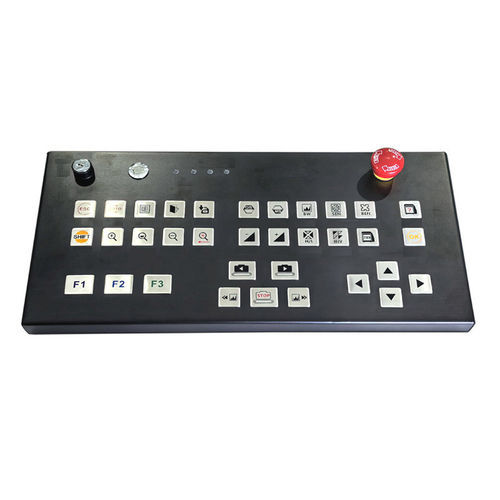

Desktop keyboard KH-RAY370-34

with mechanical keyscontrol panelUSB

Product Summary
The KH-RAY370-34 is a 34-key inspection keyboard designed for X-ray baggage screening and security checkpoint applications. It provides integrated shortcut keys for rapid operator input and a dedicated emergency stop (E-Stop) button for immediate system shutdown. Built with a 304 stainless steel top panel in a titanium black finish, the unit is intended for continuous use in high-throughput screening environments such as airports, cargo checkpoints and security inspection lines.

Features

• 304 stainless steel construction with titanium black finish
• Integrated shortcut function keys for efficient operator workflow
• Dedicated emergency stop (E-Stop) button switch for immediate shutdown
• Multiple interface options: USB, RS232, RS485 (other interfaces available)
• Optional key switch and power-lock configurations; customizable design available

Product Table
Dimensions: 370 x 180 mm
Keys: 34 keys
EMC Standard: EN55022(B)
Interface: USB, RS232, RS485 or other interface
Top Panel: Metal construction (304 stainless steel)
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista, Linux, Unix, Mac OS X, iOS, Android
Temperature Range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
Atmospheric pressure: 60-106 KPa
Humidity: 20–95% RH (operating)
MTBF: >50000H
MTTR: <30min
Warranty: 1-year limited warranty
Certifications: CE / ROHS / FCC
Place of Origin: China

Technical specifications

• Model: KH-RAY370-34
• Chassis / Top panel: 304 stainless steel, titanium black finish
• Key count: 34 keys with integrated shortcut function keys
• Emergency stop: Dedicated E-Stop button switch
• Interfaces: USB, RS232, RS485 (other options available)
• Power supply: 5.0V DC ±5%
• Dimensions: 370 x 180 mm
• EMC: EN55022(B)
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Atmospheric pressure: 60-106 KPa
• Operating humidity: 20–95% RH
• MTBF: >50000 hours; MTTR: <30 minutes
• Warranty: 1-year limited warranty
