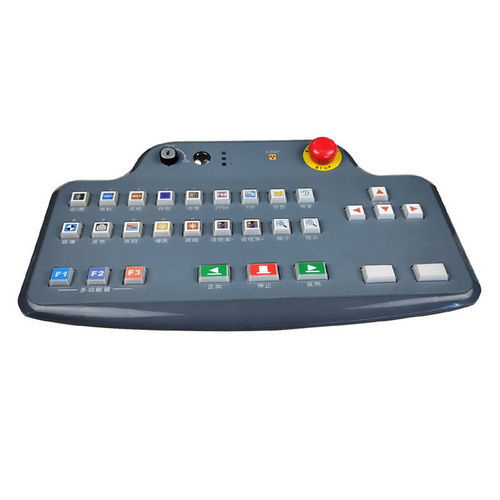

Desktop keyboard KH-RAY399-30

with mechanical keys30-keyUSB

Product Overview
The KH-RAY399-30 is an industrial plastic keyboard designed for X-ray baggage screening and security checkpoint control. It integrates 30 shortcut/function keys and a dedicated emergency stop (E-Stop) switch for immediate system shutdown. Its lightweight plastic housing and metal top panel provide a balance between portability and durability for inspection workstations. Place of Origin: China. Brand: CNKHTECH. Certifications: CE / ROHS / FCC.

Features

• Industrial plastic construction with metal top panel
• 30 programmable shortcut and function keys for efficient operation
• Dedicated emergency stop (E-Stop) switch for safety
• Available with USB or alternative interfaces
• Customizable layout and design options

Specifications (summary)
Dimensions: 390 x 213 mm
Keys: 30 keys
EMC Standard: EN55022(B)
Interface: USB or other interface
Top Panel: Metal construction
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
Storage Temperature: -25°C to +65°C
Operating Temperature: -20°C to +60°C
Atmospheric pressure: 60-106 Kpa
Humidity: 20–95% RH (operating)
MTBF: > 50000H
MTTR: < 30min
Warranty: 1-year limited warranty

Applications
Suitable for X-ray baggage scanners, airport security checkpoints, inspection stations and other security screening systems requiring dedicated controls and emergency stop functionality.

Technical details

• Model: KH-RAY399-30
• Brand: CNKHTECH
• Place of Origin: China
• Certifications: CE, ROHS, FCC
• Dimensions: 390 x 213 mm
• Number of Keys: 30 keys
• EMC Standard: EN55022(B)
• Interface Options: USB or other interface
• Top Panel Material: Metal construction
• Power Supply: 5.0V DC ±5%
• OS Compatibility: Windows (all versions), Vista, Linux, Unix, Mac OSX, iOS, Android
• Storage Temperature: -25°C to +65°C
• Operating Temperature: -20°C to +60°C
• Atmospheric Pressure: 60-106 Kpa
• Operating Humidity: 20–95% RH
• MTBF: > 50000H
• MTTR: < 30 min
• Warranty: 1-year limited warranty
