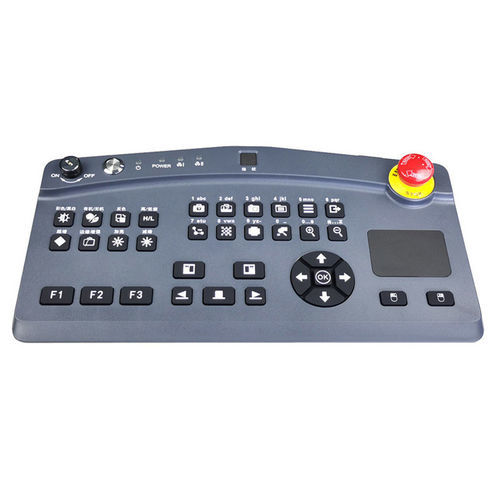

Panel-mount keyboard KH-RAY360-35
carbon contactwith 2 mouse keyswith touchpad

Panel-mount keyboard - KH-RAY360-35 - Kehang Technology - carbon contact / with 2 mouse keys / with touchpad
Panel-mount keyboard - KH-RAY360-35 - Kehang Technology - carbon contact / with 2 mouse keys / with touchpad
Panel-mount keyboard - KH-RAY360-35 - Kehang Technology - carbon contact / with 2 mouse keys / with touchpad - image - 2
Panel-mount keyboard - KH-RAY360-35 - Kehang Technology - carbon contact / with 2 mouse keys / with touchpad - image - 3
Panel-mount keyboard - KH-RAY360-35 - Kehang Technology - carbon contact / with 2 mouse keys / with touchpad - image - 4
Add to favorites
Compare this product
Go to the Kehang Technology website for more information

Characteristics

Mounting
panel-mount
Key type
carbon contact
Number of keys
with 2 mouse keys
Pointing device
with touchpad
Domain
for control panels, for the transportation industry
Connection type
USB
Structure
silicone-key
Material
metal, plastic, silicone
Protection level
EMC
Other characteristics
integrated, with fingerprint reader

Description

Product Overview
The KH-RAY360-35 is a panel-mount inspection keyboard designed for X-ray baggage screening and security checkpoint applications. It combines 33 silicone keys, an integrated sensitive touchpad and two dedicated buttons to enable precise cursor control without an external mouse. The unit supports an optional integrated fingerprint login module for controlled access and emergency safety functions. Constructed with an industrial plastic base and a metal top panel, it offers a compact, lightweight and serviceable control interface suited to high-traffic inspection workstations.

Key Features
  • Optional integrated fingerprint lock/login module for secure access
  • 33 silicone keys with graphite-conductive particle technology and silicone-encased gold contacts
  • Built-in touchpad and two dedicated cursor buttons for mouse-free operation
  • Industrial plastic housing with metal top panel for reduced weight and panel-mount installation
  • USB interface standard; other interfaces available on request
  • Customizable layout and legend options; laser-etched or color-painted characters
  • Compliant with EMC EN55022(B); certifications: CE / ROHS / FCC

Specifications
Model: KH-RAY360-35
Brand: CNKHTECH
Dimensions: 360 x 170 mm
Keys: 33 (3 + 2 dedicated buttons)
Top panel: Metal construction
Housing: Industrial plastic
Interface: USB (other interfaces optional)
Power supply: 5.0V DC ±5%
OS compatibility: Windows (all versions), Vista/Linux/Unix/Mac OSX/iOS/Android
EMC standard: EN55022(B)
Operating temperature: -40°C to +80°C
Storage temperature: -45°C to +90°C
Atmospheric pressure: 60–106 kPa
Humidity (operating): 20–95% RH
MTBF: > 50000 h
MTTR: < 30 min
Warranty: 1-year limited warranty
Place of origin: China
Certifications: CE / ROHS / FCC

Applications
  • X-ray baggage scanners and screening systems
  • Security checkpoints and access control stations
  • Inspection workstations and industrial screening equipment
  • Any panel-mounted control station requiring reliable mouse-free input and secure login
