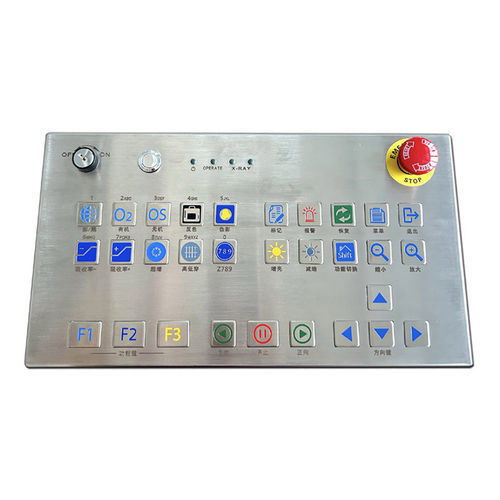

Panel-mount keyboard KH-RAY328-30

with mechanical keys30-keyUSB

Product overview
The KH-RAY328-30 is a streamlined inspection device keyboard featuring a 30-key flat button layout designed for efficient X-ray baggage screening and security checkpoint operations. Flush, low-profile keys provide an easy-to-clean surface suitable for high-traffic environments. Integrated shortcut function keys enable rapid command access and a dedicated emergency stop button ensures immediate system shutdown when required. Constructed with a durable 304 stainless steel panel in a brushed finish, it is intended for modern X-ray baggage screening applications. Place of Origin: China. Certification: CE / ROHS / FCC.

Features

• 30-key flat button layout (low-profile, easy-to-clean)
• 304 stainless steel construction with brushed finishing
• Integrated shortcut function keys for efficient operation
• Dedicated emergency stop button switch
• USB, RS232, RS485 or other interface options
• Customizable design available

Specifications
Dimensions: 328 x 180 mm
Keys: 30 keys
EMC Standard: EN55022(B)
Interface: USB, RS232, RS485 or other interface
Top Panel: Metal construction
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions; Vista / Linux / Unix / Mac OSX / iOS / Android
Temperature Range: Storage -45°C to +90°C; Operating -40°C to +80°C
Atmospheric pressure: 60-106Kpa
Humidity: 20–95% RH (operating)
MTBF: > 50000H
MTTR: < 30min
Warranty: 1-year limited warranty

Caractéristiques / spécifications techniques

• Model: KH-RAY328-30
• Material: 304 stainless steel top panel, brushed finish
• Keycount: 30 flat low-profile keys
• Emergency control: Dedicated emergency stop button
• Function keys: Integrated shortcut function keys
• Interfaces available: USB, RS232, RS485 (and other options)
• Dimensions: 328 x 180 mm
• Power: 5.0V DC ±5%
• EMC: EN55022(B)
• Operating temperature: -40°C to +80°C; Storage: -45°C to +90°C
• Atmospheric pressure: 60-106 KPa
• Operating humidity: 20–95% RH
• Reliability: MTBF > 50000 hours; MTTR < 30 minutes
• Warranty: 1-year limited warranty
• Origin & Certifications: Made in China; CE / ROHS / FCC
