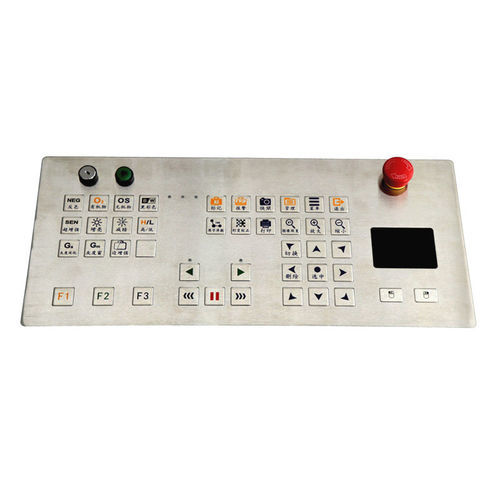

Panel-mount keyboard KH-RAY410-41

with mechanical keys41-keywith touchpad

Product overview
The KH-RAY410-41 is a panel-mount inspection keyboard designed for X-ray baggage screening and security checkpoint applications that require integrated pointing functionality. It provides 41 stainless steel keys with durable marking options and a sensitive embedded touchpad with two dedicated buttons for left/right click. The 304 stainless steel brushed top panel ensures long-term readability and resistance in demanding security environments. Multiple interface options and customizable layouts are available for secure installation and system integration.

Features

• 41 stainless steel keys with laser-etched or color-painted characters
• Integrated touchpad mouse with two dedicated buttons (Left, Right)
• Dedicated shortcut function keys to streamline operator workflow
• 304 stainless steel brushed top panel for durability and easy cleaning
• Panel-mount design for secure, flush installation
• Interfaces: USB, RS232, RS485 or other options
• Customizable design and key legends available on request

Specifications
Dimensions: 410 x 183 mm
Keys: 41
EMC Standard: EN55022(B)
Interface: USB, RS232, RS485 or other interface
Top Panel: 304 stainless steel (brushed finish)
Power Supply: 5.0V DC ±5%
OS Compatibility: All Windows versions, Vista, Linux/Unix, Mac OS X, iOS, Android
Temperature Range: Storage: -45°C to +90°C; Operating: -40°C to +80°C
Atmospheric pressure: 60–106 kPa
Humidity: 20–95% RH (operating)
MTBF: > 50000 H
MTTR: < 30 min
Warranty: 1-year limited warranty

Technical details

• Model: KH-RAY410-41
• Brand: CNKHTECH
• Place of Origin: China
• Certifications: CE / ROHS / FCC
• Panel material: 304 stainless steel (brushed finish)
• Integrated pointing: touchpad + 2 buttons
• Key count: 41
• Interfaces: USB / RS232 / RS485 (and other options)
• Power: 5.0V DC ±5%
• Dimensions: 410 x 183 mm
• Operating temperature: -40°C to +80°C
• Warranty: 1-year limited warranty
