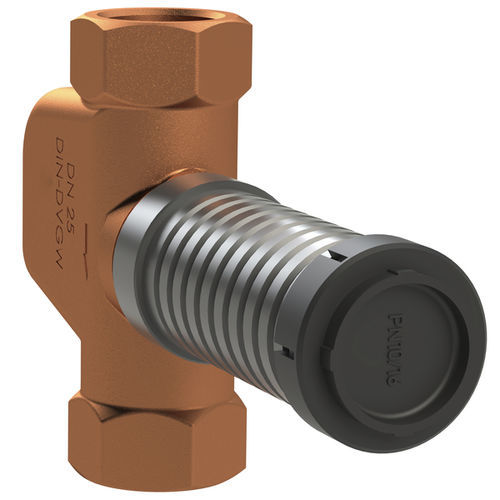

Diaphragm valve 560 01 seriesmanualstopfemale
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Function
- stop
- Body
- female, seat, stainless steel, EPDM, metal, plastic
- Applications
- shaft
- Associated function
- balancing
- Other characteristics
- ISO, DIN, corrosion-resistant
- DN
15 mm, 20 mm, 25 mm, 32 mm
(0.591 in, 0.787 in, 0.984 in, 1.26 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: 0 °C
(32 °F)- Flow rate
5.4 m³/h, 6 m³/h, 12.3 m³/h, 16.9 m³/h
(190.7 ft³/h, 211.89 ft³/h, 434.37 ft³/h, 596.82 ft³/h)
Description
wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water
maintenance-free EPDM spindle seal
EPDM-seat gasket
stainless steel cone
plastic shaft can be shortened
can be extended with optional extension kit
female pipe thread
free from dead spots
with isolating, balancing and pre-setting function
Standards and Approvals
DVGW approval
plastic parts with KTW and W 270 approval
according to accepted materials list from German environmental agency
soundproofing certification according to DIN EN ISO 3822 Class 1
DIN EN 1213
ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
