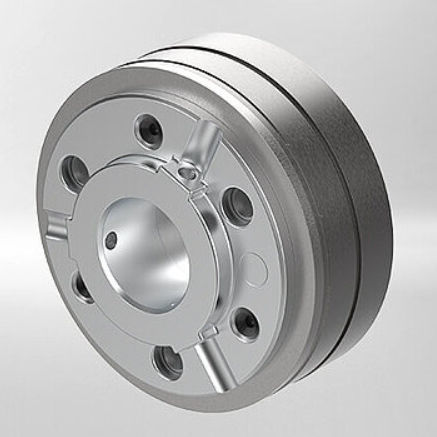

Friction brake unit Slim PM Line

electromagneticwith bearingslow-torque

Overview
The Slim PM is a compact permanent magnet holding brake for servo motors with low to medium torque requirements. It was developed as a cost-optimized and space-saving solution and uses the mechanical and electrical interface of Kendrion’s High Torque Line. This allows flexible integration into existing motor designs.

Benefits

• Compact, high power density due to an innovative magnetic circuit
• Common motor interface with the High Torque Line for design flexibility
• Single-pole friction system for stable, reliable torque
• Backlash-free torque transmission
• Residual torque-free opening regardless of installation position
• Wear-free during dynamic direction changes
• Factory-ground and torque-tested brakes
• Optional protection against bearing lubricants
• Optional strand protection for stator wire safety
• Optional ball bearing seat for precise centering and efficient installation

Applications

• Automation
• Robotics
• Servo motor technology
• Medical technology

Technical data
Designs: 6 sizes
Mode of operation: Holding brake with fail-safe function
Nominal voltage: DC 24 V
Protection class: IP 00
Thermal class: F (155°C)
Nominal torque range: 2.7 Nm - 17 Nm
Duty cycle: 100%
Temperature range: -40 °C to +120 °C
