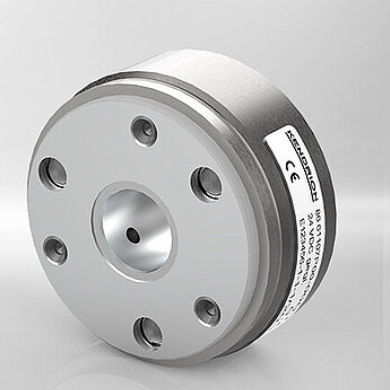

Friction brake unit PM Line

electromagneticDC voltageflange-mounted

Overview
Kendrion’s PM Line permanent magnet brake is an electromagnetically released holding brake for safe holding, positioning, and emergency stops. It provides backlash-free torque transmission and residual torque-free release in any mounting position.

Benefits

• Backlash-free torque transmission
• Residual torque-free release regardless of mounting position
• Wear-free axial movement of the armature
• High safety in the event of power failure
• Suitable for precise holding and positioning tasks
• Especially suitable for servo motor applications

Application Areas

• Robotics
• Medical technology
• Servo drives
• Mechanical engineering
• Automation technology
• Precise holding and positioning applications

Technical Details
Operating mode: Holding, positioning, emergency stop
Rated torque range: 0.4–240 Nm
Voltage: DC 24 V
Protection rating: IP 00
Temperature range: -5 °C to +120 °C
Operating principle: Permanent-magnet actuated, electromagnetically released
Mounting position: Suitable for horizontal and vertical installation
