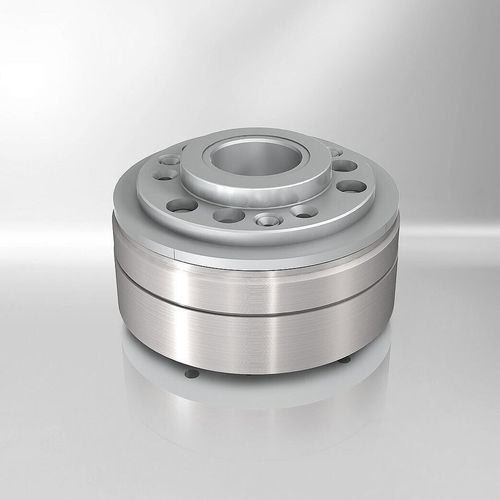

Electromagnetic release brake unit High Torque Line

electromagneticemergencyfor servo motors

Overview
Kendrion’s High Torque Line is a compact, electromagnetically released holding brake with an emergency stop function. It offers high torque density, backlash-free torque transmission, and residual torque-free release for precise and dynamic applications.

Benefits

• High torque in a compact design
• Backlash-free torque transmission
• Residual torque-free release in any mounting position
• Wear-free operation during dynamic changes of direction
• Up to 2,000 emergency stops
• Optional temperature range down to -60 °C

Application Areas

• robotics
• medical technology
• servo drives
• mechanical engineering
• automation technology
• precise holding and positioning applications

Technical Details
Operating mode: Holding brake with emergency stop function
Versions: 13 sizes
Standard rated voltage: DC 24 V
Protection class: IP 00
Thermal class: F, 155 °C
Duty cycle: 100%
Torque range: 0.1 Nm - 280 Nm
Nominal backlash: 0°
Ambient temperature: -40 °C to 120 °C; optional -60 °C
