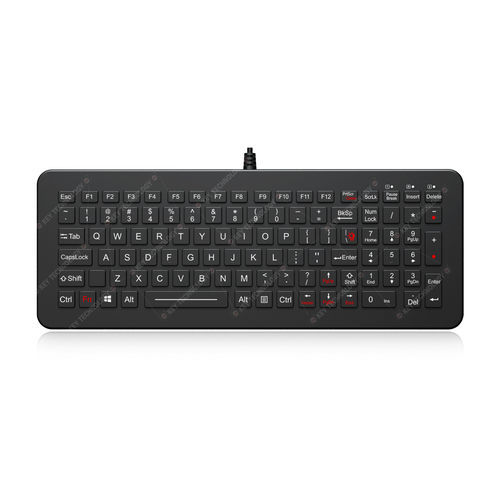

Panel-mount keyboard K-TEK-M334KP-FN-BL-NV-151B-DT-DWP

with mechanical keys101-keyfor the transportation industry

Key Travel：1.20mm±0.10mm Backlight：White Switch：Carbon-on-gold MECHANICAL DATA Key top style - Protuberant rectangular keys with tactile feeling Key size - 14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys, 21.8mm x 14.0mm for Tab key, 28.0mm x 14.0mm for Capslock key, 68.0mm x 14.0mm for Space bar Key travel - 1.20mm±0.10mm Actuation Force - 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys Switch life - more than 5 million of operations ELECTRICAL DATA Supply Voltage - DC +5V±5% Current Rating - 30mA when backlight is off, 300mA with backlight on ENVIRONMENTAL ADAPTABILITY Operating temperature - -40℃ to +75℃ Storage temperature - -45℃ to +85℃ Saline mist - 96h, IEC60512-6 Damp heat test at +40℃ - 21 days, IEC 60512-6 Dry heat test at +85℃ - 10 days, IEC 60512-6 Humidity - 3%~95% Atmospheric pressure - 60-106Kpa RELIABILITY RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) Key Lifespan - >5 million actuations MTBF - >20000H MTTR - <30min
