Panel-mount keyboard K-TEK-M275TP-FN-BL-ANA-151B-DWP-V02

carbon contactwith 2 mouse keys91-key

DESCRIPTION

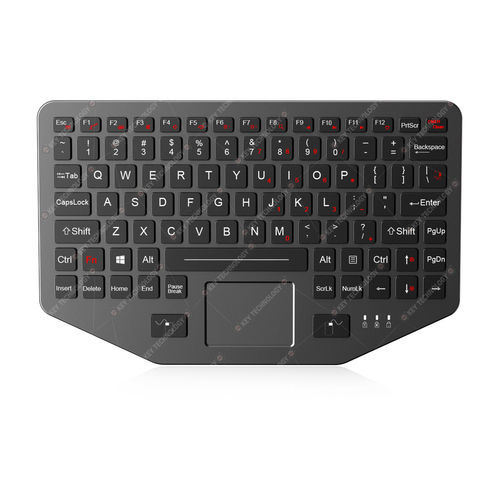

Front-panel sealed 91-key chiclet keyboard with polymer keycaps and integrated sealed touchpad. Carbon-on-gold key switch technology with 1.20 mm key travel and laser-engraved legends. FN + Clean key combination for on-site cleaning without disassembly. Top-panel mount solution suitable for harsh outdoor and military environments. Adjustable white backlight and selectable PS/2 or USB output.

Dimensions
285.00mm x 179.69mm (L x W)

Application

• Vehicle
• Aerospace / Avionics
• Naval / Maritime
• Defense systems
• Radar consoles
• Command consoles
• Portable rugged laptops
• UAV ground stations

MECHANICAL DATA
Key: 91 keys (including 2 mouse buttons)
Key top style: Protuberant rectangular keys, laser engraved & etched legends available
Key technology: Carbon-on-gold key switch technology
Key size: FN keys 14.2mm x 10.0mm; Enter keys 25.0mm x 15.8mm; Normal keys approx. 15.8mm x 15.0mm
Key travel: 1.20mm ±0.10mm
Actuation force: 1.0 N ±0.2 N (normal keys); 1.5 N ±0.2 N (Enter/Backspace/Shift/Caps lock/Tab etc.)
Switch life: >5 million operations
Touch pad: Sealed rugged touchpad
Touchpad cover: Composite
Lifetime: >10 million strokes
Sensing: Mutual capacitance sensing
X/Y axis resolution: 40 Counts / mm
Position report: Relative
Output: USB (PS/2 optional)
Tracking speed: Up to 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating (active): < 10 mA; G.W.: ≈1.5 kg

ELECTRICAL DATA
Supply Voltage: DC +5V ±5%
Current Rating: 50 mA (backlight off); 300 mA (backlight on)
EMC/EMI: Meets MIL-STD-461G (CE101, CE102, CS101, CS106, CS112, CS114, CS115, CS116, RE101, RE102, RS101, RS103 as applicable)
Also meets MIL-STD-810H environmental requirements

ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40℃ to +75℃
Storage temperature: -45℃ to +85℃
Saline mist: 96 h, IEC60512-6
Damp heat (40℃): 21 days, IEC60512-6
Dry heat (85℃): 10 days, IEC60512-6
Humidity: 100%
Atmospheric pressure: 60–106 Kpa

RELIABILITY
Certifications: RoHS, CE, FCC; Tested to MIL-STD-461G and MIL-STD-810H (wide temperature, low pressure, humidity, vibration, shock, rain, salt mist, dust, fungus, solar radiation etc.)
Protection: IP65 front-panel (dynamic)
Vandal resistance: IK09
Key lifespan: >5 million actuations
MTBF: >20,000 h
MTTR: <30 min

Technical specifications

• Model / Series: K-TEK M275TP (product code: K-TEK-M275TP-FN-BL-ANA-151B-DWP-V02)
• Category: Chiclet Keypad
• Keys: 91 (including 2 mouse buttons)
• Key travel: 1.20 mm ±0.10 mm
• Backlight: Adjustable white
• Interface: USB (PS/2 optional)
• Key switch: Carbon-on-gold
• Protection: IP65 front-panel, IK09 vandal resistant
• Mounting: Top panel mount
• Operating temperature: -40℃ to +75℃
• Dimensions: 285.00 mm x 179.69 mm
• Power: 5VDC ±0.25V
• Weight: ≈1.5 kg
• Certifications/Standards: MIL-STD-461G, MIL-STD-810H, RoHS, CE, FCC
