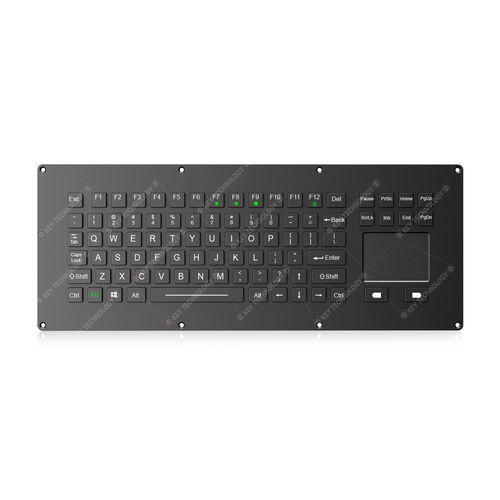

Desktop keyboard K-TEK-M392TP-FN-BL-DWP

panel-mountwith mechanical keys88-key

1. Product Overview
This is an 88-key chiclet keyboard equipped with 2 mouse buttons, featuring IP65 dynamic waterproof and IK09 vandal-proof rating. It integrates an ultra-thin electronic controller, top-row F1-F12 function keys and a 400DPI fully sealed rugged touchpad on the right side. Built with CNC aluminum alloy front panel, PC keycaps and military-grade PCB adopting carbon-on-gold key switch technology, it delivers 1.20mm±0.10mm key travel for comfortable tactile feedback and silent, precise data input. A silicone rubber gasket ensures tight sealing with cabinets, and sinking mounting holes are designed for top panel installation. It supports FN+Clean combination keys for easy on-unit cleaning and adjustable white backlight. The product meets MIL-STD-810H military environmental standard and ten core military performance requirements, perfectly suited for diverse harsh working environments.

2. Key Features
88 keys plus 2 mouse buttons, protruding rectangular chiclet key design
IP65 dynamic waterproof and IK09 vandal-proof front panel
Built-in ultra-thin electronic controller and 400DPI fully sealed rugged touchpad
CNC aluminum alloy front panel, PC keycaps and military-grade carbon-on-gold key switches
1.20mm±0.10mm key travel, superior tactile feel and noise-free operation
Silicone rubber sealing gasket & sinking holes for reliable top panel mounting
FN+Clean shortcut keys for convenient cleaning without disassembly
Adjustable white backlight for operation in low-light conditions
Fully compliant with MIL-STD-810H and ten major military performance standards
Excellent resistance to humidity, salt mist, rain and dust for harsh applications

3. Applications
Vehicle equipment, aerospace systems, naval and maritime facilities, defense industry, radar consoles, control terminals, rugged portable laptops, UAV ground stations and other mission-critical applications.

4. Mechanical Data
Total Keys: 88 keys (including 2 mouse buttons)
Key Style: Protuberant rectangular keys with tactile feedback
Key Travel: 1.20 mm ± 0.10 mm
Switch Technology: Carbon-on-Gold key switch PCB
Actuation Force: 1.0 N ± 0.2 N (14.00mm × 14.00mm keys); 1.5 N ± 0.2 N (21.8mm × 14.0mm keys)
Touchpad Type: Sealed rugged touchpad with composite cover
Touchpad Technology: Mutual capacitance sensing
Touchpad Lifespan: Over 10 million strokes
Position Resolution: 40 Counts /mm
Position Output: Relative mode
Max Tracking Speed: 1,016 m/sec
Touchpad Voltage: 5VDC ± 0.25V
Touchpad Operating Current: < 10 mA
Front Panel Dimension: 392.0 mm × 153.0 mm

5. Electrical & Compliance Data
Supply Voltage: DC +5V ±5%
Working Current: 30mA (backlight off); 300mA (backlight on)
Service Lifespan: Over 5 years
Interface: USB
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android, U-cos (to be confirmed)
Certifications: RoHS compliant, CE, FCC certified

6. Environmental Adaptability & Reliability
Environmental Performance
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -45℃ ~ +85℃
Operating Humidity: 3% ~ 95% RH
Atmospheric Pressure: 60 kPa ~ 106 kPa
Salt Mist Test: 96 hours (compliant with IEC 60512-6)
Damp Heat Test (+40℃): 21 days (compliant with IEC 60512-6)
Dry Heat Test (+85℃): 10 days (compliant with IEC 60512-6)
Military Standard: Fully passed MIL-STD-810H tests covering temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, fungus, solar radiation, etc.
Reliability Parameters
Protection Level: IP65 (dynamic waterproof, front panel)
Vandal Resistance: IK09
Key Lifespan: Over 5 million actuations
MTBF: More than 20000 hours
MTTR: Less than 30 minutes

7. Technical Specifications
Product Type: IP65 Vandal-proof Chiclet Keyboard with Integrated Touchpad
Key Layout: 88 keys + 2 mouse buttons + F1-F12 function keys
Main Material: CNC aluminum alloy front panel, PC keycaps
Core Switch: Carbon-on-Gold key switch
Touchpad: 400DPI sealed rugged touchpad, mutual capacitance type
Key Travel: 1.20 mm ± 0.10 mm
Backlight: Adjustable white backlight
Protection Grade: IP65 dynamic waterproof, IK09 vandal-proof
Mounting Way: Top panel mounting with sinking holes + silicone sealing gasket
Interface: USB
Compliance: MIL-STD-810H, CE, FCC, RoHS
Front Panel Size: 392.0 mm × 153.0 mm
