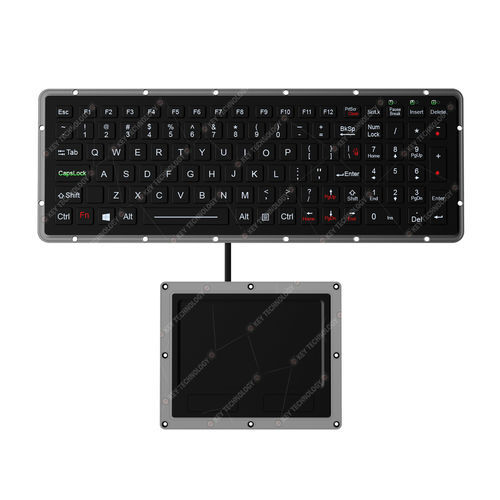

Panel-mount keyboard K-TEK-M327KP-FN-BL-NV-151B-DWP+M125TP
with mechanical keys101-keywith 2 mouse keys

Panel-mount keyboard - K-TEK-M327KP-FN-BL-NV-151B-DWP+M125TP - Key Technology Rugged System Limited - with mechanical keys / 101-key / with 2 mouse keys
Panel-mount keyboard - K-TEK-M327KP-FN-BL-NV-151B-DWP+M125TP - Key Technology Rugged System Limited - with mechanical keys / 101-key / with 2 mouse keys
Panel-mount keyboard - K-TEK-M327KP-FN-BL-NV-151B-DWP+M125TP - Key Technology Rugged System Limited - with mechanical keys / 101-key / with 2 mouse keys - image - 2
Panel-mount keyboard - K-TEK-M327KP-FN-BL-NV-151B-DWP+M125TP - Key Technology Rugged System Limited - with mechanical keys / 101-key / with 2 mouse keys - image - 3
Panel-mount keyboard - K-TEK-M327KP-FN-BL-NV-151B-DWP+M125TP - Key Technology Rugged System Limited - with mechanical keys / 101-key / with 2 mouse keys - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with 2 mouse keys, 101-key
Pointing device
with touchpad
Domain
industrial, outdoor, for public access kiosks and internet terminals, for self-service information kiosk, marine, for the navy, for aerospace applications, for the transportation industry
Connection type
USB, PS2
Structure
QWERTY, AZERTY, silicone-key, ultra-slim
Material
silicone
Protection level
vandal-proof, waterproof, rugged, harsh environments, scratch-proof, IK09, IEC, IP65, MIL-STD 810F, MIL-STD-461G, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.20mm±0.10mm Backlight：White Switch：Carbon-on-gold MECHANICAL DATA Key top style - Protuberant rectangular keys with tactile feeling Key size - 14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys. Key travel - 1.20mm±0.10mm Actuation Force - 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys Touch pad - sealed & ruggedized tough touchpad Touchpad cover - Composite More than Lifetime 10 million strokes Mutual capacitance sensing X/Y axis location detection resolution - 40 Counts /mm X/Y position report - relative Tracking speed - Maximum 1,016 m/sec Power supply voltage - 5VDC ± 0.25V Current rating (active mode) - 5 years OS - All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). ENVIRONMENTAL ADAPTABILITY Operating temperature - -40℃ to +75℃ Storage temperature - -45℃ to +85℃ Saline mist - 96h, IEC60512-6 Damp heat test at +40℃ - 21 days, IEC 60512-6 Dry heat test at +85℃ - 10 days, IEC 60512-6 Humidity - 3%~95% Atmospheric pressure - 60-106Kpa RELIABILITY Key Lifespan - >5 million actuations MTBF - >20000H MTTR - <30min
