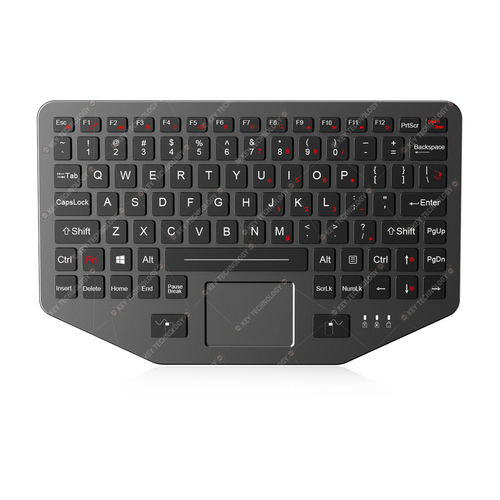

Panel-mount keyboard K-TEK-M275TP-FN-BL-ML-DWP-V03

carbon contactwith 2 mouse keys91-key

Overview
Sealed 91-key chiclet keypad with integrated sealed touchpad and built-in military-grade PCB, designed for harsh environments and wide temperature ranges.

Key features

• 91 keys including 2 mouse buttons and 12 function keys (F1–F12)
• Carbon-on-gold key switch technology; 1.20mm ±0.10mm key travel
• Adjustable white backlight; laser-engraved or etched legends available
• Front panel IP65 dynamic protection; vandal resistant IK09
• Top panel mount with single-piece silicone rubber seal for tight cabinet integration
• Sealed rugged touchpad with mutual capacitance sensing and composite cover
• Interfaces: USB (standard) or PS2 (optional); 5V DC power supply
• Designed to meet MIL-STD-810H and certified to common EMI/EMC and safety standards

Technical specifications

• Model: K-TEK-M275TP-FN-BL-ML-DWP-V03
• Keys: 91 (including 2 mouse buttons); 12 function keys
• Key travel: 1.20mm ±0.10mm; actuation force: 1.0 N (normal), 1.5 N (large keys)
• Switch life: >5 million operations; key lifetime: >10 million strokes
• Touchpad resolution: 40 counts/mm; tracking speed max 1,016 m/sec
• Interfaces/OS: USB / PS2 optional; compatible with Windows, Linux, Unix, Mac OS X, VxWorks, Android
• Power: 5V DC ±0.25V; current: <10 mA idle, 50 mA backlight off, 300 mA backlight on
• Dimensions: 285.00 mm x 179.69 mm (L x W); Weight ≈ 1.5 kg

Mechanical data

• Key sizes: FN keys 14.2 × 10.0 mm; Enter 25.0 × 15.8 mm; normal keys 15.8 × 15.0 mm
• Key top style: protuberant rectangular keys; laser engraved & etched legends available
• Key technology: carbon-on-gold; actuation force tolerance ±0.2 N
• Touchpad: sealed, ruggedized; cover composite; mutual capacitance sensing

Environmental and reliability

• Operating temperature: -40°C to +75°C; storage temperature: -45°C to +85°C
• Salt mist: 96 h (IEC60512-6); damp heat +40°C: 21 days; dry heat +85°C: 10 days
• Atmospheric pressure: 60–106 kPa; humidity: up to 100%
• Protection: IP65 dynamic (front panel); vandal resistance IK09
• Certifications: RoHS, CE, FCC; designed to meet MIL-STD-810H
• MTBF: >20,000 h; MTTR: <30 min

Applications

• Vehicle consoles, airborne and naval systems, defense equipment
• Maritime and radar consoles, portable rugged laptops, UAV ground stations
• Any harsh-environment control stations requiring sealed input devices
