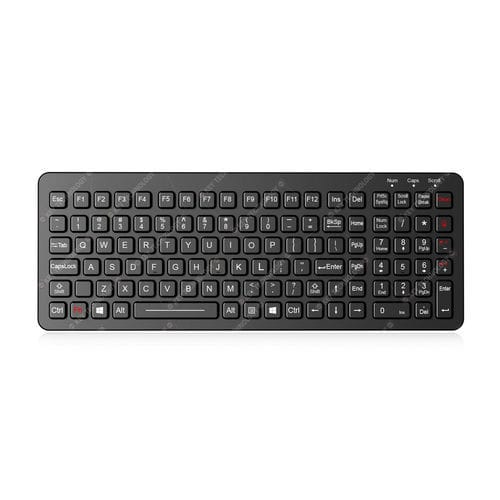

Panel-mount keyboard K-TEK-M366KP-FN-BL-ML-OEM
carbon contact108-keyfor aerospace applications

Panel-mount keyboard - K-TEK-M366KP-FN-BL-ML-OEM - Key Technology Rugged System Limited - carbon contact / 108-key / for aerospace applications
Panel-mount keyboard - K-TEK-M366KP-FN-BL-ML-OEM - Key Technology Rugged System Limited - carbon contact / 108-key / for aerospace applications
Panel-mount keyboard - K-TEK-M366KP-FN-BL-ML-OEM - Key Technology Rugged System Limited - carbon contact / 108-key / for aerospace applications - image - 2
Panel-mount keyboard - K-TEK-M366KP-FN-BL-ML-OEM - Key Technology Rugged System Limited - carbon contact / 108-key / for aerospace applications - image - 3
Panel-mount keyboard - K-TEK-M366KP-FN-BL-ML-OEM - Key Technology Rugged System Limited - carbon contact / 108-key / for aerospace applications - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
carbon contact
Number of keys
108-key
Domain
industrial, outdoor, for public access kiosks and internet terminals, for medical applications, for mining applications, for self-service information kiosk, maritime industry, for aerospace applications, for oil industry applications, for aeronautical applications
Connection type
USB, PS2
Structure
QWERTY, AZERTY, silicone-key, ultra-slim
Material
silicone
Protection level
waterproof, rugged, vandal-proof, harsh environments, scratch-proof, standard, weatherproof, IEC, IP65, MIL-STD 810F, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.50mm±0.10mm Backlight：White Key Switch：Carbon-on-gold MECHANICAL DATA Switch Contact Material - Carbon-on-gold key switch technology Key Top Style - Protuberant rectangular keys with tactile feeling Key Travel - 1.50mm±0.10mm Actuation Force - 1.5N±0.2N (pressure point ) G.W. - 1.00KGs ELECTRICAL DATA Supply Voltage - DC +5V±5% Current Rating - 30mA when backlight is off, 300mA with backlight on EMC Standard - EN 55032:2015 EN 55035:2017 Lifespan - > 5 years OS - All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). ENVIRONMENTAL ADAPTABILITY Operating temperature - -40℃ to +75℃ Storage temperature - -45℃ to +85℃ Operating RH - 3%~95% Atmospheric pressure - 60-106Kpa Saline mist - 96 hours, IEC 60512-6 Damp heat test at +40℃ - 21 days, IEC 60512-6 Dry heat test at +85℃ - 10 days, IEC 60512-6 RELIABILITY RoHS compliant, CE and FCC certified, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.) Key Lifespan - >5 million actuations MTBF - >20000H MTTR - <30min
