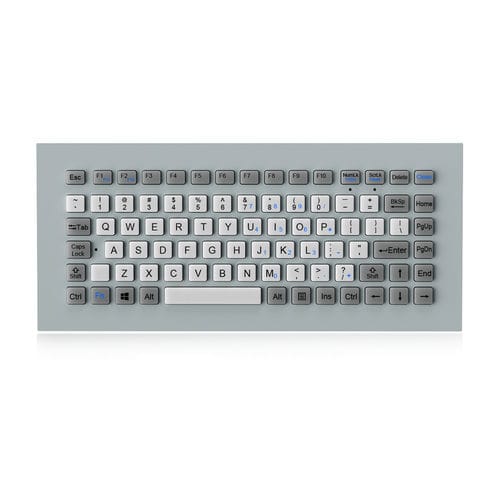

Desktop keyboard K-TEK-M305-FN-DWP

carbon contact86-keyfor the transportation industry

Category: Silicone Keyboard - Key Number: 86 keys - Key Travel: 1.50mm±0.10mm - Interface: USB/PS2 optional - Key Switch: Carbon-on-gold MECHANICAL DATA - Keys: 86 keys - Key top style: Protuberant rectangular keys with tactile feeling - Key Size: 12.50mm x 14.00mm - Key travel: 1.40mm±0.10mm - Actuation Force: 1.6 N±0.2N (pressure point) - Switch life: more than 5 million operations - Front Plate: 1.50mm thickness super quality brushed stainless steel with special elegant grey color - Back Plate: 1.50mm thickness super quality brushed stainless steel - G.W.: 1.30KG ELECTRICAL DATA - Supply Voltage: DC +5V±5% - Current Rating: 50mA - EMC Standard: EN 55032:2015 EN 55035:2017 - Lifespan: > 5 years - Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB - Interface: PS2, USB available - OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). ENVIRONMENTAL ADAPTABILITY - Operating temperature: -20℃ to +65℃ - Storage temperature: -30℃ to +75℃ - Operating RH: 100% - Atmospheric pressure: 60-106Kpa - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at +40℃: 21 days, IEC 60512-6 - Dry heat test at +85℃: 10 days, IEC 60512-6 RELIABILITY - RoHS Compliant, CE and FCC, ESD - MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, dust, fungus, solar radiation etc.) - Protection Level: IP65 dynamic - Lifespan: >5 years - MTBF: >20000H - MTTR: <30min APPLICATION - Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
