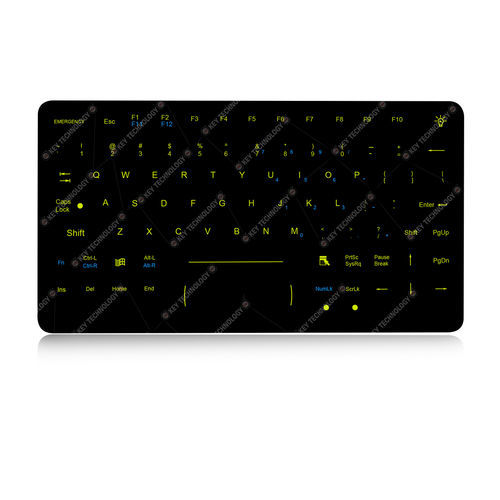

Desktop keyboard K-TEK-M282-DHP-FN-BL-151B-IK-OEM
with mechanical keyswith 3 mouse keys89-key

Desktop keyboard - K-TEK-M282-DHP-FN-BL-151B-IK-OEM - Key Technology Rugged System Limited - with mechanical keys / with 3 mouse keys / 89-key
Desktop keyboard - K-TEK-M282-DHP-FN-BL-151B-IK-OEM - Key Technology Rugged System Limited - with mechanical keys / with 3 mouse keys / 89-key
Desktop keyboard - K-TEK-M282-DHP-FN-BL-151B-IK-OEM - Key Technology Rugged System Limited - with mechanical keys / with 3 mouse keys / 89-key - image - 2
Desktop keyboard - K-TEK-M282-DHP-FN-BL-151B-IK-OEM - Key Technology Rugged System Limited - with mechanical keys / with 3 mouse keys / 89-key - image - 3
Desktop keyboard - K-TEK-M282-DHP-FN-BL-151B-IK-OEM - Key Technology Rugged System Limited - with mechanical keys / with 3 mouse keys / 89-key - image - 4
Desktop keyboard - K-TEK-M282-DHP-FN-BL-151B-IK-OEM - Key Technology Rugged System Limited - with mechanical keys / with 3 mouse keys / 89-key - image - 5
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
desktop
Key type
with mechanical keys
Number of keys
with 3 mouse keys, 89-key
Pointing device
with other pointing device
Domain
for mining applications, industrial, outdoor, for public access kiosks and internet terminals, control panel, for marine applications, for the navy, for aerospace applications, for the transportation industry, for aeronautical applications, petrochemical
Connection type
USB
Structure
QWERTY, silicone-key, ultra-slim
Material
silicone, carbon
Protection level
rugged, ESD, IEC, MIL-STD-461G, IP65, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Category: Silicone Keyboard - Key Number: 89 keys (including 3 mouse buttons) - Key Travel: 1.50mm±0.10mm - Interface: USB - Key Switch: Carbon-on-gold MECHANICAL DATA - Key: 89 keys (including 3 mouse buttons) - Key top style: Protuberant rectangular keys with tactile feeling. - Key Size: 12.6mm x 13.3mm for normal keys - Key travel: 1.40mm - Actuation Force: 160-200g - Switch life: more than 5 million of operations. - G.W.: ≈0.80KGs ELECTRICAL DATA - Supply Voltage: DC +5V±5% - Current Rating: 50mA when backlight is off, 300mA with backlight on - Meet MIL-STD-461G (EMC, EMI, EMS, ESD). ENVIRONMENTAL ADAPTABILITY - Operating temperature: -40℃ to +75℃ - Storage temperature: -45℃ to +85℃ - Saline mist: 96h, IEC60512-6 - Damp heat test at +40℃: 21 days, IEC 60512-6 - Dry heat test at +85℃: 10 days, IEC 60512-6 - Humidity: 100% - Atmospheric pressure: 60-106Kpa RELIABILITY - RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) - Protection Level: IP65 dynamic (front panel) - Key Lifespan: >5 million actuations - MTBF: >20000H - MTTR: <30min APPLICATIONS - Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
