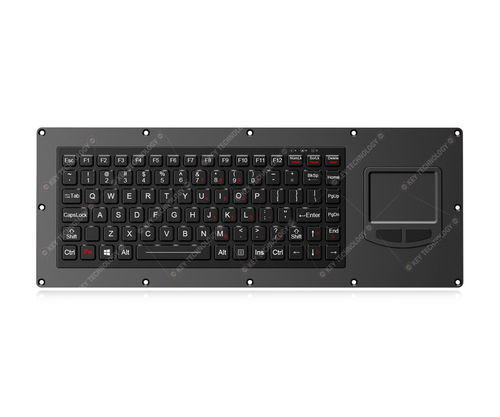

Desktop keyboard K-TEK-M400-150TP-FN-BL-ML-BT

carbon contactwith 2 mouse keys87-key

Category: Silicone Keyboard - Key Number: 87 keys for keyboard, 2 keys for touchpad - Key Travel: 1.50mm±0.10mm - Interface: PS2, USB available - Key Switch: Carbon-on-gold MECHANICAL DATA - Key: 87 keys for keyboard, 2 keys for touchpad - Key top style: Protuberant rectangular keys with tactile feeling. - Key travel: 1.5mm±0.1mm - Actuation Force: 1.5N±0.2N (pressure point) - Switch life: more than 5 million of operations. - Touch pad: 1.3mm thick PCB, containing polyester film - Touchpad cover: Composite - More than Lifetime 10 million strokes - Mutual capacitance sensing - X/Y axis location detection resolution: 40 Counts /mm - X/Y position report: relative - Tracking speed: Maximum 1,016 m/sec - Power supply voltage: 5V ± 0.25V - Current rating (active mode): 5 years - Switch Contact Material: Military PCB with carbon-on-gold key switch technology - Interface: PS2, USB available - OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). ENVIRONMENTAL ADAPTABILITY - Operating temperature: -40℃ to +75℃ - Storage temperature: -45℃ to +85℃ - Saline mist: 96h, IEC60512-6 - Damp heat test at +40℃: 21 days, IEC 60512-6 - Dry heat test at +85℃: 10 days, IEC 60512-6 - Humidity: 3%~95% - Atmospheric pressure: 60-106Kpa RELIABILITY - RoHS compliant, CE and FCC certified, MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) - Protection Level: IP65 dynamic (front panel) - Key Lifespan: >5 million actuations - MTBF: >20000H - MTTR: <30min APPLICATION - Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
