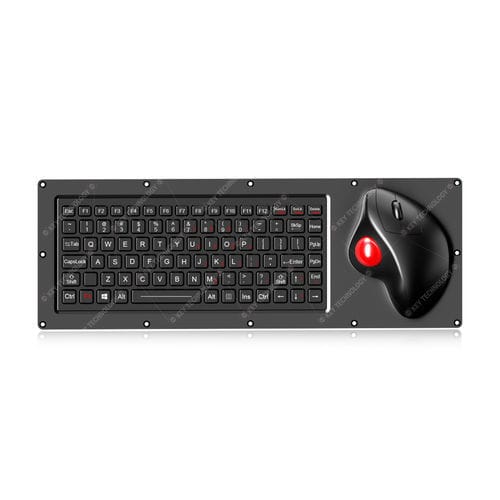

Desktop keyboard K-TEK-M425-OTB-FN-BL-BT-NV-151B

carbon contactwith 3 mouse keys87-key

Category: Silicone Keyboard - Key Number: 87 keys + 3 mouse keys - Key Travel: 1.50mm±0.10mm - Interface: USB - Key Switch: Carbon-on-gold MECHANICAL DATA - Key: 87 keys + 3 mouse keys - Key travel: 1.50mm±0.10mm - Actuation Force: 1.5N±0.2N (pressure point) - Switch life: more than 5 million operations - G.W.: 2.50KGs ELECTRICAL DATA - Supply Voltage: DC +5V±5% - Current Rating: 30mA when backlight is off, 300mA with backlight on Meet MIL-STD-461G (EMC, EMI, EMS, ESD): 1. CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads 2. CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads 3. CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads 4. CS106 Conducted Susceptibility, Transients, Power Leads 5. CS112 Electrostatic Discharge Susceptibility 6. CS114 4kHz - 400MHz Conducted Susceptibility, Bulk Cable injection 7. CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation 8. CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads 9. RE101 25Hz -100kHz Radiated Emissions, Magnetic Field 10. RE102 10kHz - 18GHz Radiated Emissions, Electric Field 11. RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field 12. RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand & dust, fungus, solar radiation etc.) - Lifespan: > 5 years - Switch Contact Material: carbon-on-gold key switch technology - Interface: USB - OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android. ENVIRONMENTAL ADAPTABILITY - Operating temperature: -40℃ to +75℃ - Storage temperature: -45℃ to +85℃ - Saline mist: 96h, IEC60512-6 - Damp heat test at +40℃: 21 days, IEC 60512-6 - Dry heat test at +85℃: 10 days, IEC 60512-6 - Humidity: 3%-95% - Atmospheric pressure: 60-106Kpa RELIABILITY - RoHS compliant, CE and FCC - MIL-STD-461G-EMC-EMI-EMS-ESD and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, salt mist, sand & dust, fungus, solar radiation etc.) - Protection Level: IP65 - Key Lifespan: >5 million actuations - MTBF: >20000H - MTTR: <30min APPLICATION - Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.
