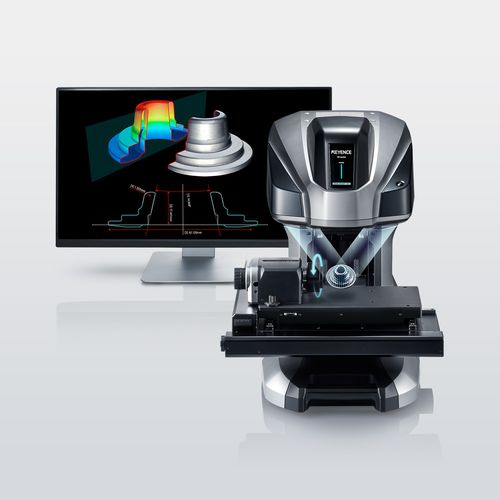

3D measurement system VR-6000 series

roughnessflatnessoptical

Versatile Profilometer Eliminates Blind Spots and Measures Glossy Surfaces Easy-to-use, non-contact 3D measurement system. Motorized rotational scanning for performing a wider variety of measurements. •High-precision 3D measurement of an entire surface in as little as 1 second •Rotational scanning on a wide variety of materials •Measure nearly any callout with a single device The VR-6000 Optical Profilometer performs non-contact measurement to replace stylus profilometers and roughness meters. This 3D profile system captures full surface data across the target with a resolution of 0.1 μm, enabling measurement of features that cannot be performed with probe-type instruments. The new rotational scanning greatly expands the measurement capabilities of the system. True-to-life cross section measurements can be performed with no blind spots. Wall thicknesses and recessed features can be measured without cutting or destroying the target. In addition, the HDR scanning algorithm provides enhanced scanning capabilities for instantly determining the optimal settings to capture high quality data, even on glossy and matte surfaces. A 3D profilometer can be used for a wide range of applications across multiple industries. Examples of materials that can be analyzed using a surface profiler include medical devices, jet engine turbine vanes for the aerospace sector, and valve trains found in automotive manufacturing. Using a 3D surface profilometer in these contexts means you can get accurate measurements of material thickness and detection of defects without the need for the instrument to come into contact with the object.
