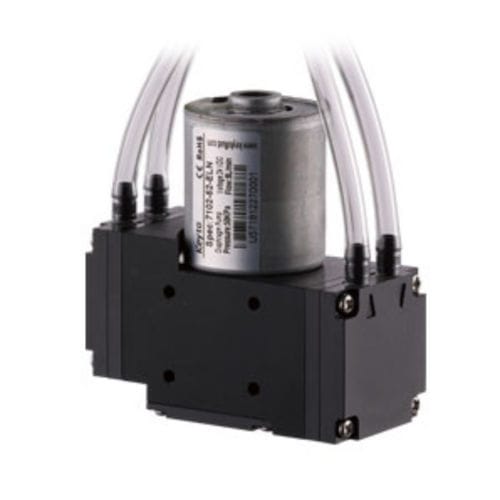

Air pump 7102-52-ELN DCdiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- DC
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- for cleaning
- Material
- EPDM
- Voltage
- 24 V, 12 V
- Other characteristics
- compact, low-noise, flow, brushless, dual-head
- Flow
Max.: 8 l/min
(2.11338 us gal/min)Min.: 0.1 l/min
(0.02642 us gal/min)- Power
12 W
(0.02 hp)
Description
Body material - PPS
Diaphragm material - EPDM
Connection port - 4mm inner diameter silicone tube
Pressure range - Output≥120KPa,suction≤-70KPa
Rated voltage(DC) - 12V/24V
Lifetime - 10000 hrs(Brushless motor,Adjustable speed is optional)
Safety protection current - 1.5A
Rated current - 12V 1A /24V 0.35A
Leadwire length - 300mm
Main feature -
1.Low noise,compact structure;
2.Good seal,no back flow when motor power off;
3.Large flow,maintenance easy；
Applicable occasions -
1.Suitable for cleaning,discharging waste liquid,setting up vacuum and other applications.
