6 1/2 digit resolution, Essential device of "Electronic Measurement"
Supporting basic measurement with variety of options

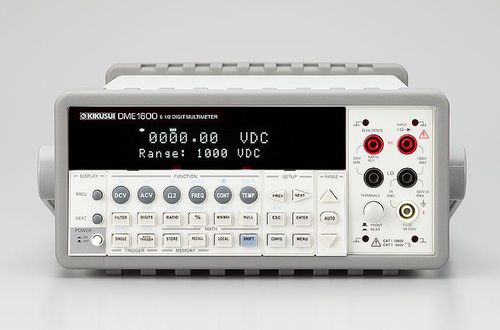

The DME1600 is a digital multi-meter with a resolution of 6 1/2 digit. It can be performed up to 2000 times per second at the setting condition of 4 1/2 digit as fastest measurement, and it can measures 50 times per second when it is set for the 6 1/2 digit. The DME1600 offers fully function of measurement for the voltage, current, resistance, frequency and temperature which can be used various application of measurement and evaluation in design, development and debugging of electronics devices.The DME1600 provides USB and GPIB interface* as standard feature for automated measurement besides manual operation.Furthermore, the DME1600 offers wide range of options such as 20-channel multi-point scanner card supporting the basic measurement.
Resolution : 6 1/2 digit
Display : 5 x 7 dot matrix VFD, dual display with 3-color
Basic measurement function
DC voltage : 0.1V, 1V, 10V, 100V, 1000V
AC voltage : 0.1V, 1V, 10V, 100V, 750V
DC current : 10mA, 100mA, 1A, 3A
AC current : 1A, 3A
