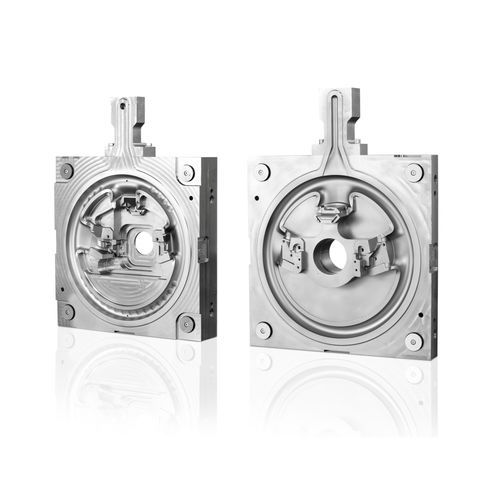

Polyurethane foaming mold

Tagline
Tough skin and soft core.

Overview
Reliable, compact, pneumatic drives for economical and user-friendly operation. Thanks to the standardised tool movement unit, adaptation to customer and component requirements is easy.

Key benefits

• Decorative surfaces with a pleasant feel
• High abrasion resistance
• Good mechanical and chemical resistance
• Low thermal conductivity

Product details
The moulds and movement units are designed for flexible operation in integral foam and compact systems. They support stationary moulding systems and mould carriers and can be integrated with dosing and paint-dosing technology, painting technology, handling and extraction equipment. The tools and movement units can be operated in stand form technology and on rotary tables and allow quick tool changes. The standardised tool movement unit facilitates adaptation to specific customer and component requirements.

Use cases / Applications
Designed for automotive and similar industries; typical applications include steering wheel production and a wide variety of cable-harness and interior components. Steering wheel production uses stationary moulding systems with mould carriers, dosing and painting processes, handling and extraction technology; the moulds and movement units are configured for these production environments.

Technical characteristics / specifications

• Drive type: compact pneumatic drives
• Tool movement: standardised tool movement unit for easy adaptation
• Operation modes: stand form technology and rotary table operation
• Integration: compatible with mould carriers, dosing technology (incl. paint dosing), painting technology, handling and extraction systems
• Maintenance / changeover: supports quick tool changes
• Material / surface properties: decorative surface capability, high abrasion resistance, mechanical and chemical resistance, low thermal conductivity
