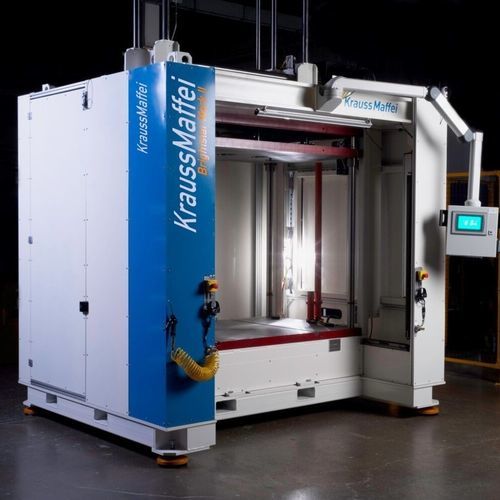

Electric press BrightStarlaminationfor the automotive industryfor OEM
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Function
- lamination
- Applications
- for the automotive industry, for OEM
- Structure
- frame
- Other characteristics
- with front loading/unloading
- Force
Max.: 20 tf
Min.: 5 tf
- Opening
Max.: 1,175 mm
(46 in)Min.: 300 mm
(12 in)- Table width
Max.: 1,200 mm
(47 in)Min.: 50 mm
(2 in)- Table length
Max.: 1,700 mm
(67 in)Min.: 100 mm
(4 in)
Description
Product overview
A modular solution for press lamination and edge moulding designed for precision and production flexibility in automotive interiors. The BrightStar electric press integrates modular frames with high‑precision diesets to simplify tool changeover and ensure repeatable results for OEM and Tier‑1 manufacturing.
Main features
Advantages
Use cases
Technical specifications
A modular solution for press lamination and edge moulding designed for precision and production flexibility in automotive interiors. The BrightStar electric press integrates modular frames with high‑precision diesets to simplify tool changeover and ensure repeatable results for OEM and Tier‑1 manufacturing.
Main features
- Modular architecture for press lamination and edge folding applications
- Integrated high‑precision diesets—no additional guide system required
- Pressure capacity 5–20 tonnes with adjustable daylight
- Front or rear loading/unloading options
- On‑site commissioning and technical support
Advantages
- Adaptable to varying production volumes and tool sizes
- Reduced setup time through integrated diesets
- Suitable for automotive interior components with tight tolerances
Use cases
- Press lamination and edge folding of instrument panels, laminated interior parts and similar automotive components
Technical specifications
- Pressure force: 5 to 20 tonnes
- Maximum recommended tool size: < 1200 x 1700 mm
- Daylight (min/max): Min. 300 mm / Max. 1175 mm
- Modular electric press architecture
- Options for front or rear loading/unloading
- Designed for automotive OEM and Tier 1 production environments
