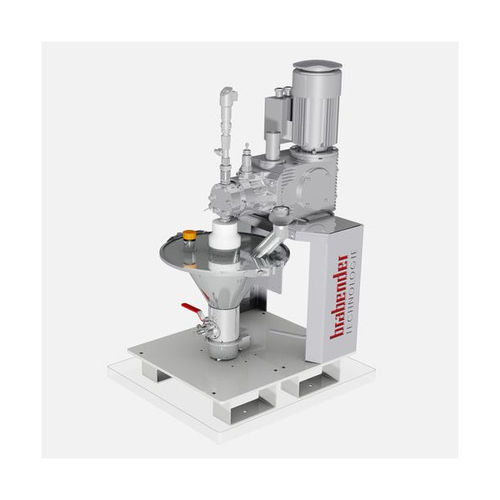

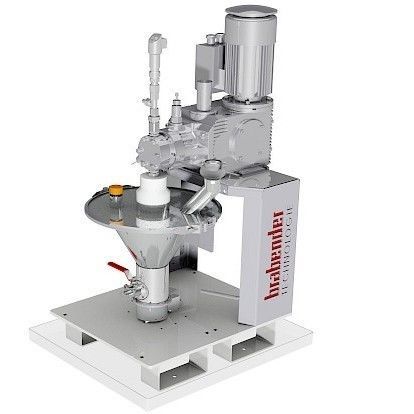

Liquids loss-in-weight feeder FDDW

gravimetricscrewwith gear pump

Product overview
Loss-in-weight feeder for liquids from Kubota Brabender Technologie. Designed to feed liquid products while accounting for medium characteristics (density, viscosity, solids content, temperature, reactivity, toxicological properties) and the respective process requirements (accuracy, feed rate, turndown ratio, counterpressure).

Technical details

• Design adapted to medium properties (density, viscosity, solids content, temperature, reactivity, toxicological properties) and process requirements (accuracy, feed rate, turndown ratio, counterpressure)
• Applicable feed pumps: piston, diaphragm, gear, hose, rotary piston, eccentric screw
• High-tech weighing system with DigiMASS-2 digital load cell for high accuracy
• Heated versions available: electrical, hot water, thermal oil
• Gravimetric (loss-in-weight) feeding principle

Power range

• 100–10000 dm3/h (3.53–353.15 cuft/h)

Technical specifications

• Model: FDDW
• Feeding principle: loss-in-weight (gravimetric) feeding of liquids
• Suitable pump types: piston, diaphragm, gear, hose, rotary piston, eccentric screw
• Weighing system: DigiMASS-2 digital load cell
• Available heated versions: electrical, hot water, thermal oil
• Process adaptivity: accommodates varying density, viscosity, solids content, temperature, reactivity and toxicological properties
• Performance range: 100–10000 dm³/h (3.53–353.15 cuft/h)
