Powder loss-in-weight feeder DSR28

for plastic pelletsgravimetricvolumetric

Product summary

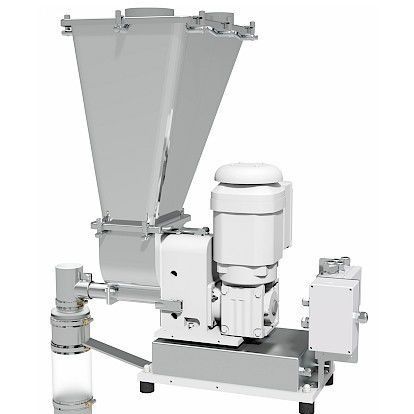

Single-screw loss-in-weight feeder from Kubota Brabender Technologie. Designed for powders and pellets, the unit features a stainless steel hopper with a stirring agitator to ensure consistent screw filling and a steady mass flow of ingredient.

Technical details

• Loss-in-weight feeder suitable for powders and pellets
• Stainless steel hopper with stirring agitator for consistent screw filling and mass flow
• Separate screw and agitator motors (3-phase AC gear motors) — except model DSR28
• Interchangeable screws and screw tubes for rapid adaptation to different materials and feed rates
• Operates in volumetric and gravimetric modes

Power Range

• 1–298 dm3/h (0.04–10.52 cuft/h)

Characteristics / technical specifications

• Type: Single-screw loss-in-weight feeder
• Model: DSR28
• Hopper: Stainless steel with stirring agitator
• Drive: Separate screw and agitator motors (3-phase AC gear motors) — except model DSR28
• Screws: Interchangeable screws and screw tubes for quick adjustment
• Measurement modes: Volumetric and gravimetric
• Capacity / Power range: 1–298 dm3/h (0.04–10.52 cuft/h)
