Fiber loss-in-weight feeder FlexWall® FW155-0
powderother applicationsfor plastic pellets

Fiber loss-in-weight feeder - FlexWall® FW155-0 - Kubota Brabender Technologie GmbH - powder / other applications / for plastic pellets
Fiber loss-in-weight feeder - FlexWall® FW155-0 - Kubota Brabender Technologie GmbH - powder / other applications / for plastic pellets
Fiber loss-in-weight feeder - FlexWall® FW155-0 - Kubota Brabender Technologie GmbH - powder / other applications / for plastic pellets - image - 2
Fiber loss-in-weight feeder - FlexWall® FW155-0 - Kubota Brabender Technologie GmbH - powder / other applications / for plastic pellets - image - 3
Fiber loss-in-weight feeder - FlexWall® FW155-0 - Kubota Brabender Technologie GmbH - powder / other applications / for plastic pellets - image - 4
Fiber loss-in-weight feeder - FlexWall® FW155-0 - Kubota Brabender Technologie GmbH - powder / other applications / for plastic pellets - image - 5
Add to favorites
Compare this product
Go to the Kubota Brabender Technologie GmbH website for more information

Characteristics

Product
fiber, powder, other applications, for plastic pellets
Type
volumetric, gravimetric, loss-in-weight, screw
Other characteristics
configurable, hopper, weighing

Description

Product Overview

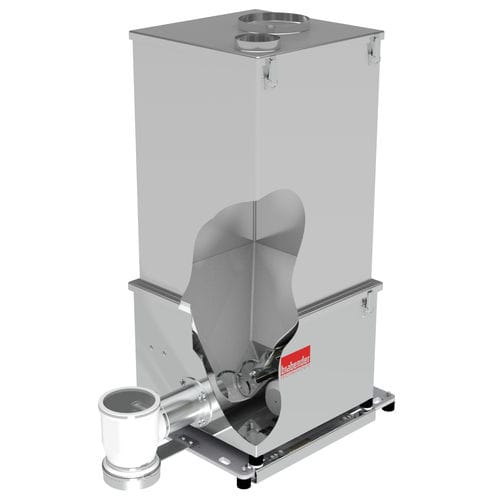

FlexWall®Classic loss-in-weight feeder from Kubota Brabender Technologie

Technical details
  • Universal loss-in-weight feeder for virtually all flowable ingredients (powders, pellets, flakes, fibers, etc.)
  • Flexible polyurethane hopper agitated by amplitude adjustable paddles for consistent screw filling and mass flow of ingredient without degradation
  • Interchangeable screws and screw tubes allowing quick adjustment to changing ingredients and feed rates
  • Optional separate paddle motor to allow paddle speed adjustment for difficult flowing ingredients (not available for FW20)
  • Volumetric and gravimetric

Power Range
  • 100–25570 dm3/h / 3.53–903 cuft/h

Caractéristiques / spécifications techniques
  • Model: FlexWall® FW155-0
  • Product type: Loss-in-weight feeder
  • Suitable for: powders, pellets, flakes, fibers and other flowable ingredients
  • Hopper material: flexible polyurethane
  • Feeding mechanism: screw feed with amplitude-adjustable paddles for hopper agitation
  • Adjustment: interchangeable screws and screw tubes for different ingredients and feed rates
  • Optional features: separate paddle motor for paddle speed adjustment (not available for FW20)
  • Measurement modes: volumetric and gravimetric
  • Throughput: 100–25570 dm3/h (3.53–903 cuft/h)
