Liquids loss-in-weight feeder FDDW

gravimetricloss-in-weightscrew

Overview

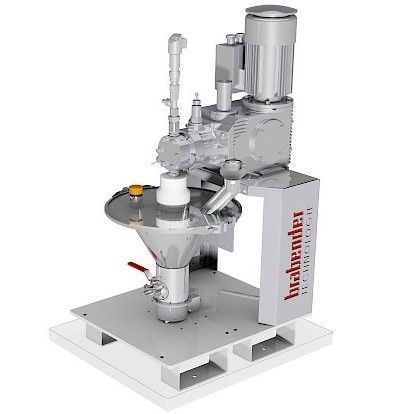

Loss-in-weight feeder for liquids from Kubota Brabender Technologie.

Technical details

• Details depend on the characteristics of the medium to be fed (density, viscosity, solids content, temperature, reactivity, toxicological properties, etc.) and the respective process requirements (accuracy, feed rate, turndown ratio, counterpressure, etc.).
• Applicable feed pumps: piston, diaphragm, gear, hose, rotary piston or eccentric screw pumps, etc.
• High-tech weighing system with digital load cell DigiMASS-2 for high weighing accuracy.
• Heated versions available (electrical, hot water, thermal oil, etc.).
• Gravimetric dosing principle ensures precise mass-based feeding.

Power Range

• 50–5000 dm3/h (1.77–176.57 cuft/h)

Characteristics / technical specifications

• Model / designation: FDDW
• Operating principle: loss-in-weight (gravimetric) feeding of liquid products
• Feed rate / Power range: 50–5000 dm3/h (1.77–176.57 cuft/h)
• Weighing system: DigiMASS-2 digital load cell for high weighing accuracy
• Compatible pump types: piston, diaphragm, gear, hose, rotary piston, eccentric screw pumps, and similar
• Adjustments and design depend on product properties: density, viscosity, solids content, temperature, reactivity, toxicological properties
• Available options: heated versions (electrical heating, hot water heating, thermal oil heating)
• Intended use: gravimetric dosing/feeding of liquid media in process applications
