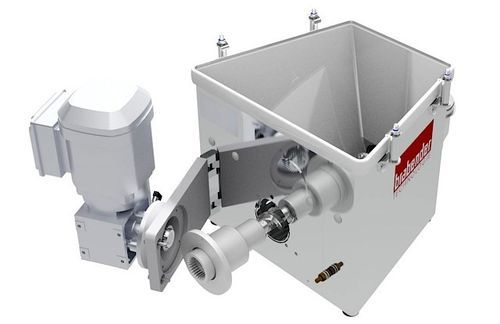

Granules loss-in-weight feeder FlexWall®Plus FW40-1

fiberfor solidspowder

Overview
Loss-in-weight feeder FlexWall®Plus FW40-1 from Kubota Brabender Technologie designed for precise dosing of flowable ingredients in continuous industrial processes.

Technical details

• Universal loss-in-weight feeder for powders, pellets, flakes, fibers and other flowable ingredients
• Flexible polyurethane hopper with amplitude-adjustable paddles to ensure consistent screw filling and gentle mass flow without ingredient degradation
• Compact trapezoidal design allowing up to 6 feeders to be arranged around a central feed point for space‑efficient installation
• Interchangeable screws and screw tubes for rapid adaptation to different ingredients and feed rates
• Operating modes: volumetric and gravimetric

Power Range

• 4–1075 dm3/h / 0.14–37.96 cuft/h

Characteristics / technical specifications

• Model: FlexWall®Plus FW40-1
• Product type: Loss-in-weight feeder
• Suitable for: powders, pellets, flakes, fibers and other flowable ingredients
• Hopper material: flexible polyurethane
• Hopper agitation: amplitude-adjustable paddles for consistent screw filling and minimized product degradation
• Construction/shape: compact trapezoidal design enabling multi-unit arrangement around a central feed point
• Screw system: interchangeable screws and screw tubes for rapid changeover
• Feeding modes: volumetric and gravimetric
• Capacity: 4–1075 dm3/h (0.14–37.96 cuft/h)
