Diesel engine V1305-E2B series
4-cylinderin-linewater cooling

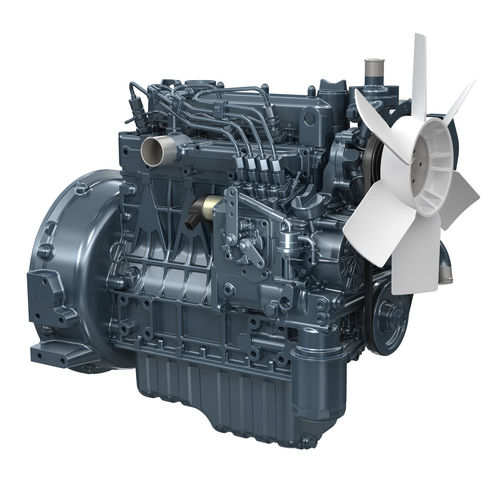

Diesel engine - V1305-E2B series - KUBOTA Engine - 4-cylinder / in-line / water cooling
Diesel engine - V1305-E2B series - KUBOTA Engine - 4-cylinder / in-line / water cooling
Diesel engine - V1305-E2B series - KUBOTA Engine - 4-cylinder / in-line / water cooling - image - 2
Diesel engine - V1305-E2B series - KUBOTA Engine - 4-cylinder / in-line / water cooling - image - 3
Diesel engine - V1305-E2B series - KUBOTA Engine - 4-cylinder / in-line / water cooling - image - 4
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
in-line
Cooling system
water cooling
Emissions level
Tier 2
Other characteristics
4-stroke
Power

Max.: 33 kW
(44.87 hp)

Min.: 18.5 kW
(25.15 hp)

23 kW
(31.27 hp)

Torque

Max.: 118.6 Nm
(87.474871 ft.lb)

Min.: 81.4 Nm
(60.037559 ft.lb)

Rotational speed

2,300 rpm, 3,000 rpm, 3,600 rpm
(14,451.3262 rad.min-1, 18,849.5559 rad.min-1, 22,619.4671 rad.min-1)

Displacement

1.335 cm³
(0.045 US fl oz)

Weight

110 kg
(242.51 lb)

Length

76 mm
(3 in)

Width

73.6 mm
(2.9 in)

Height

3 mm
(0.1 in)

Description

Emissions The V1505 engine complies with EPA / CARB Tier 4 emissions Durable Power The Kubota 05 Series is an established leader, selected as the power source of choice by various industrial equipment manufacturers. By reducing output, the V1505 engine realizes a smooth transition from E3 to E4. Clean and Quiet Power Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of the emission regulation below 37 kW The half-float valve cover and MoS2-coated pistons reduce noise levels and decrease vibrations transmitted from the valve area.
