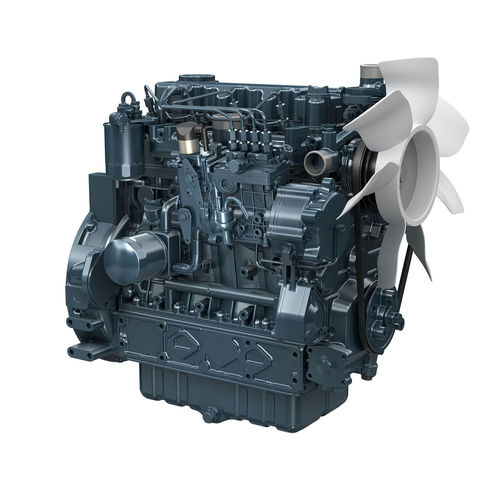

Diesel engine V3600-E3B series
4-cylinderin-linewater cooling

Diesel engine - V3600-E3B series - KUBOTA Engine - 4-cylinder / in-line / water cooling
Diesel engine - V3600-E3B series - KUBOTA Engine - 4-cylinder / in-line / water cooling
Diesel engine - V3600-E3B series - KUBOTA Engine - 4-cylinder / in-line / water cooling - image - 2
Diesel engine - V3600-E3B series - KUBOTA Engine - 4-cylinder / in-line / water cooling - image - 3
Diesel engine - V3600-E3B series - KUBOTA Engine - 4-cylinder / in-line / water cooling - image - 4
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
in-line
Cooling system
water cooling
Emissions level
Tier 4, Stage III, Tier 3
Other characteristics
4-stroke, compact, low-noise
Power

49.8 kW, 63 kW
(67.71 hp, 85.66 hp)

Torque

221 Nm, 296 Nm
(163.001235 ft.lb, 218.318396 ft.lb)

Rotational speed

2,600 rpm
(16,336.2818 rad.min-1)

Weight

261 kg
(575.41 lb)

Length

98 mm
(3.9 in)

Width

120 mm
(4.7 in)

Height

3.9 mm
(0.2 in)

Description

Emissions The Kubota V3600 naturally aspirated engine complies with EPA / CARB interim Tier 4 + EU Stage IIIA emissions. Durable Power The Kubota V3600 engine is a high power engine with the same footprint as the V3300 engine, as well as larger displacement. Clean and Quiet Power Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide lower particulate matter (PM) levels. Options Fan positions are available at two heights to enable various equipment configurations.
