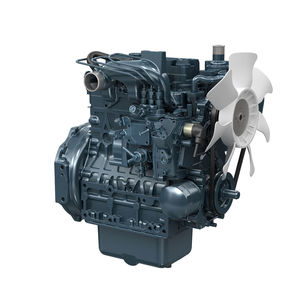

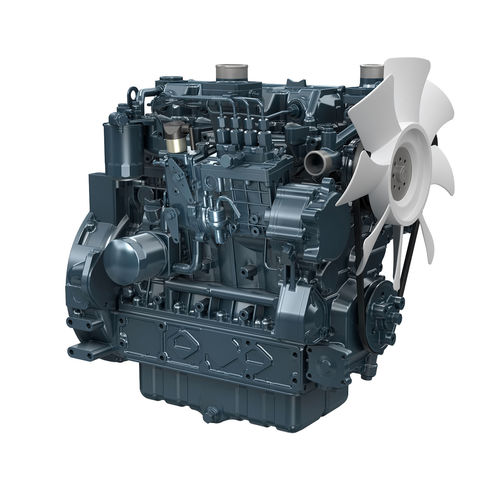

Diesel engine V3800DI series

4-cylinderturbochargeddirect injection

V3800DI-E2B GENERAL SPECIFICATION Engine model: V3800DI-E2B FEATURES and BENEFITS Emissions The Kubota V3800 direct injection turbocharged engine complies with the EPA / CARB Tier 3 + EU Stage IIIA emissions. These engines meet emissions regulations with minimal additional required devices. For example, NOx is reduced by mechanical means alone, including the use of a cooled exhaust gas recirculation (EGR) system Durable Power Within Kubota’s industrial diesel engine lineup, the V3800DI-T engine has high output of the 75 kW range and below amoung Kubota’s engine line-up. This engine requires no electronic control devices in order to comply with the stringent emission regulations Clean and Quiet Power Kubota’s original E-CDIS (Center Direct Injection System) combustion system, renowned for clean combustion, has been updated. Fuel injection pressure has been increased. The half float valve cover and MoS2-coated pistons reduce noise levels and decrease vibrations transmitted from the valve area, providing enhanced noise reduction.
